Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 13.5V - 16.5V Input
G1509S-2WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 111mA, 111mA |
| Power (Watts) | 1.998 W |
| Applications | ITE (Commercial), Medical |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 80% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 60601-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 6 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | G1509WS-2WR3 | G60 | G0515S-2WR2 | GQA2W004A280V-007-R |
| Manufacturer | Mornsun America, LLC | XP Power | Mornsun America, LLC | TDK-Lambda |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |

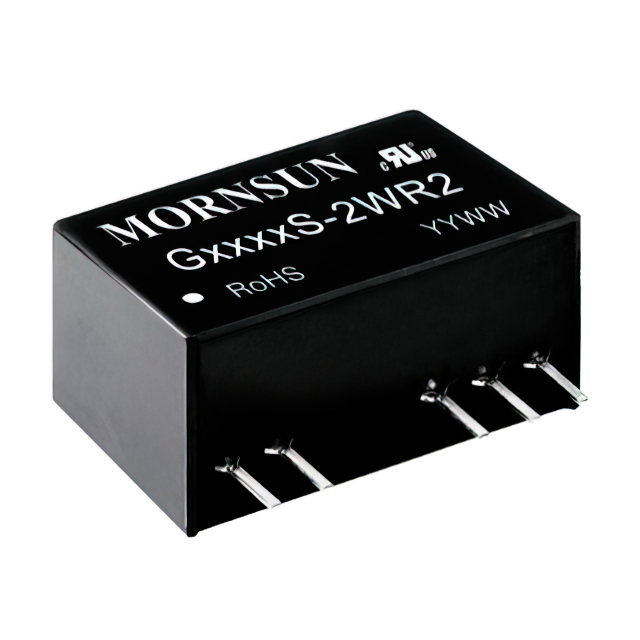

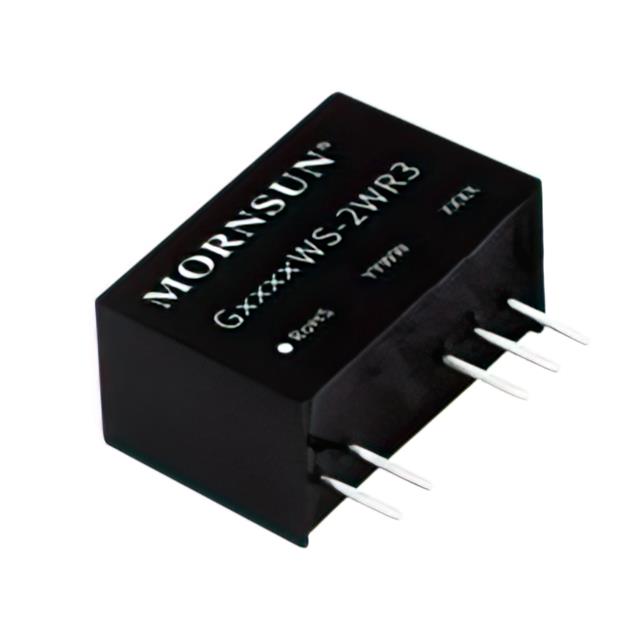

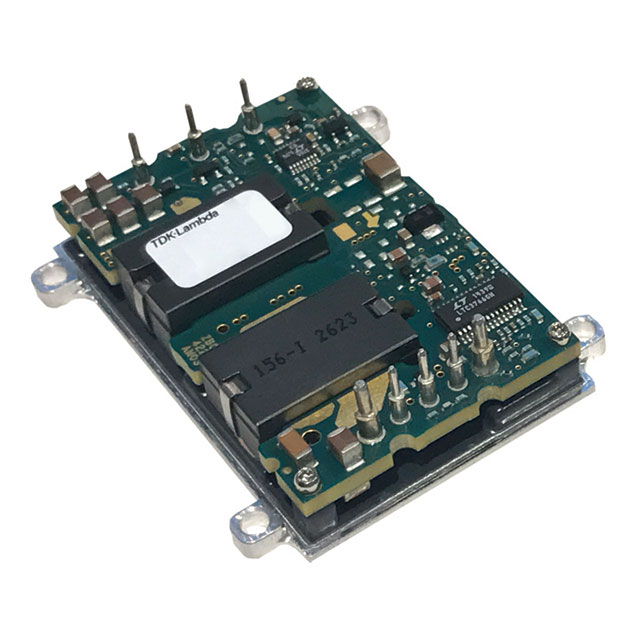

| Description | ISOLATED MODULE DC DC CONVERTER2 | DC DC CONVERTER 6000V 1.5W | ISOLATED MODULE DC DC CONVERTER2 | DC DC CONVERTER 28V 120W |
| Series | XP Power | TDK-Lambda | ||
| Packaging | G_WS-2WR3 (2W) | Bulk | G_S-2WR2 (2W) | Tray |
