G170P02D2
lmages are for reference only.G170P02D2
P-20V,-16A,RD(MAX)<17M@-4.5V,VTH
Datasheet6-UDFN Exposed Pad
39,718 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 20 V 16A (Tc) 18W (Tc) Surface Mount 6-DFN (2x2)
G170P02D2
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 2179 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 18W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DFN (2x2) |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

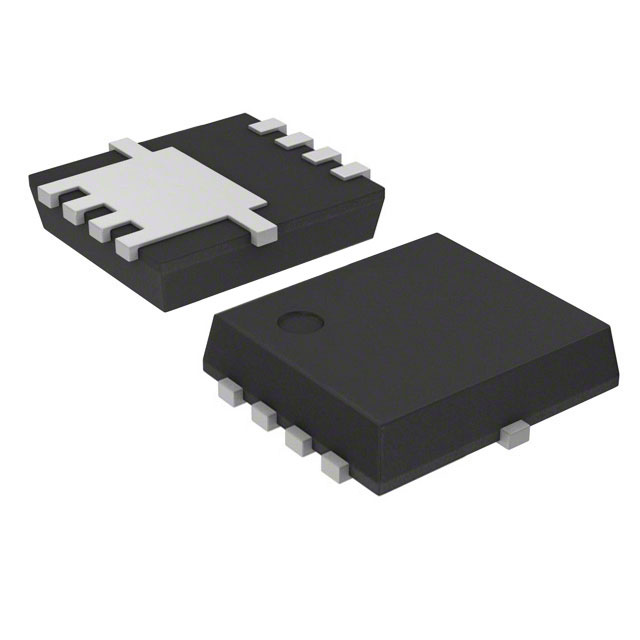

| Part Number | G170P03D3 | G170P06M | BS170PSTOA | AUIRF4104S |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Diodes Incorporated | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | P-30V, -20A,RD<18M@-10V,VTH-1V~- | MOSFET P-CH 60V 65A TO-263 | MOSFET N-CH 60V 270MA E-LINE | MOSFET N-CH 40V 75A D2PAK |
| Series | TrenchFET® | TrenchFET® | - | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube |
