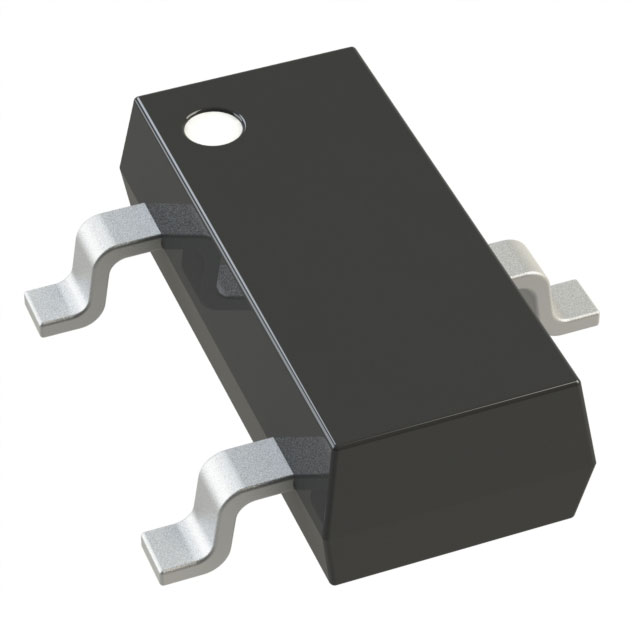

P-Channel 20 V 4A (Tc) 1.4W (Tc) Surface Mount SOT-23-3
G2305
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 4.1A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1050 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | G2304 | G230P06D5 | G230P06F | G230P06K |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOSFET N-CH 30V 3.6A SOT-23 | MOSFET P-CH 60V 48A DFN5*6-8L | MOSFET P-CH 60V 42A TO-220F | P-CH,-60V,-60A,RD(MAX)<20M@-10V, |
| Series | TrenchFET® | TrenchFET® | TrenchFET® | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
