G2RV-SL500-AP AC/DC24

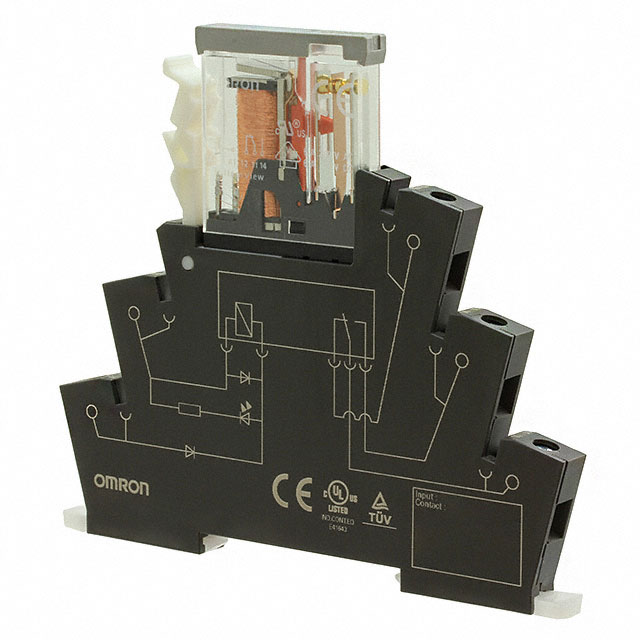

lmages are for reference only.G2RV-SL500-AP AC/DC24
RELAY GEN PURPOSE SPDT 50MA 24V
Datasheet-
93,871 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) DIN Rail
G2RV-SL500-AP AC/DC24
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | Omron Automation and Safety |
| Series | G2RV |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | DIN Rail |
| Coil Voltage | 24VAC/DC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 50 mA |
| Switching Voltage | 30VAC, 36VDC - Max |
| Load - Max Switching | - |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Spring Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VAC/DC |
| Must Release Voltage | 2.4 VAC/DC |
| Operate Time | 20 ms |
| Release Time | 40 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Tin Indium (AgSnIn), Gold (Au) |
| Approval Agency | CE, cULus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | G2RV-SL |
| Coil Current | 13 mA |
| Coil Resistance | 1846 Ohms |
| Product Attribute | |
 |
|
|
| Part Number | G2RV-SL500-AP AC/DC48 | G2RV-SL500-AP AC110 | G2RV-SL500-AP AC230 | G2RV-SL500-AP DC24 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE SPDT 50MA 48V | RELAY GEN PURPOSE SPDT 50MA 110V | RELAY GEN PURPOSE SPDT 50MA 230V | RELAY GEN PURPOSE SPDT 50MA 24V |
| Series | G2RV | G2RV | G2RV | G2RV |
| Packaging | Bulk | Bulk | Bulk | Bulk |
