Product CatalogPart Number
G3R12MT12K
Manufacturer
GeneSiC SemiconductorDescription
1200V 12M TO-247-4 G3R SIC MOSFE
Datasheet
DatasheetPackage
TO-247-4
In Stock
63,232 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
G3R12MT12K
G3R12MT12K
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 1200 V 157A (Tc) 567W (Tc) Through Hole TO-247-4
Quick Inquiry
G3R12MT12K
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 157A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 100A, 18V |
| Vgs(th) (Max) @ Id | 2.7V @ 50mA |
| Vgs (Max) | +22V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 9335 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 567W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4 |
| Package / Case | TO-247-4 |
| Base Product Number | G3R12M |
| Gate Charge (Qg) (Max) @ Vgs | 288 nC @ 15 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

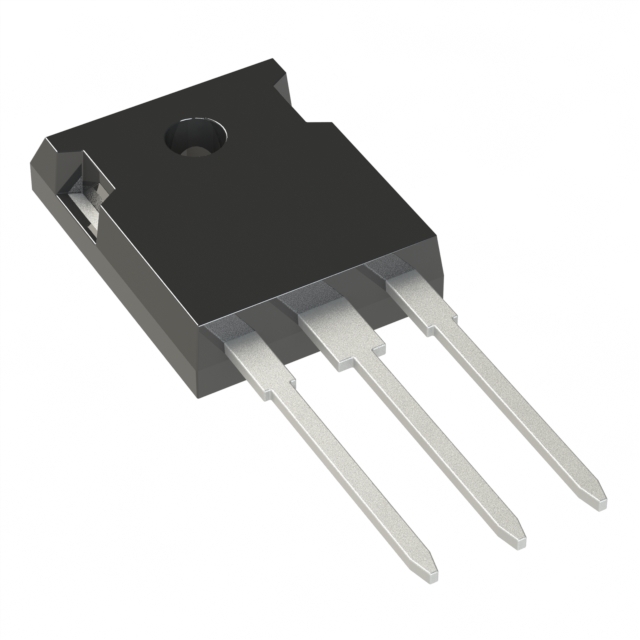

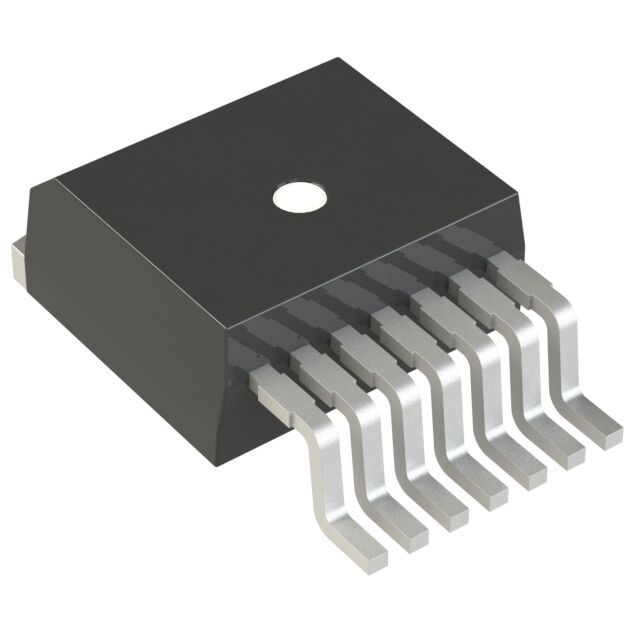

| Part Number | G3R160MT12D | G3R160MT12J | G3R160MT12J-TR | G3R160MT17D |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SIC MOSFET N-CH 22A TO247-3 | SIC MOSFET N-CH 19A TO263-7 | 1200V 160M TO-263-7 G3R SIC MOSF | SIC MOSFET N-CH 21A TO247-3 |
| Series | G3R™ | G3R™ | G3R™, LoRing™ | G3R™ |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
