G5NB-1A4-EL-HA DC12
lmages are for reference only.G5NB-1A4-EL-HA DC12
RELAY GEN PURPOSE SPST 7A 12V
Datasheet-
68,702 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
G5NB-1A4-EL-HA DC12
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G5NB-EL |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 7 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Load - Max Switching | 1750VA, 210W |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | CQC, CSA, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 720 Ohms |
| Base Product Number | G5NB-1A |
| Product Attribute |  |
 |
 |
 |

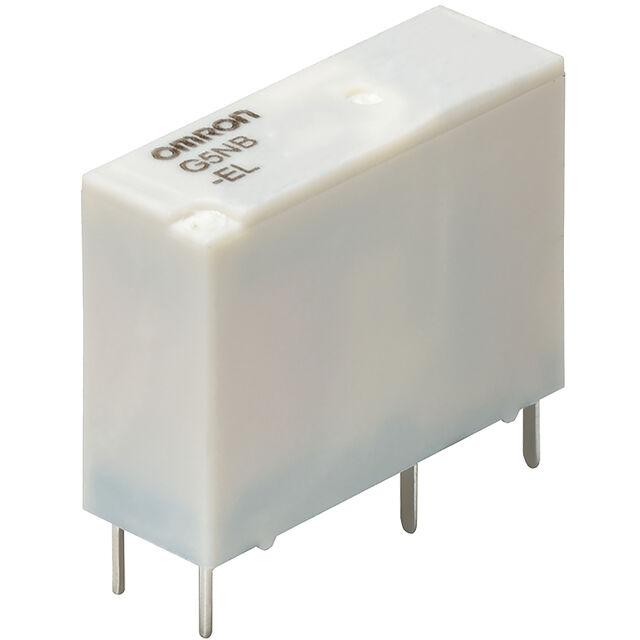

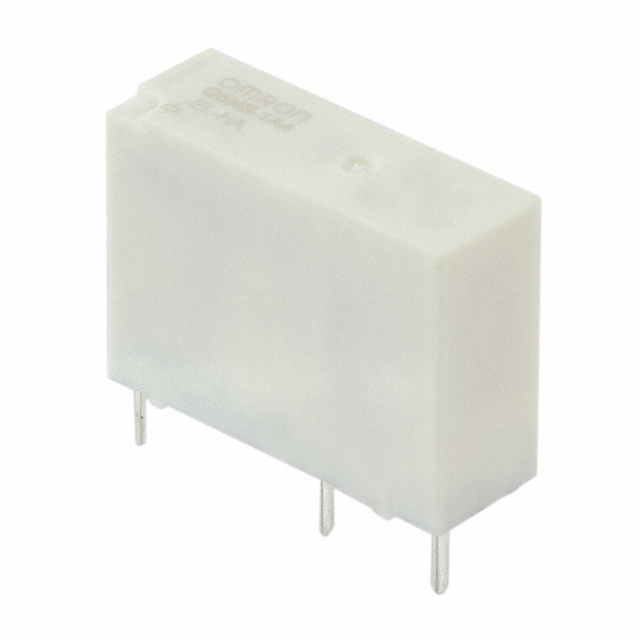

| Part Number | G5NB-1A4-EL-HA DC24 | G5NB-1A4-EL-HA-CF DC12 | G5NB-1A4-EL-HA-CF DC24 | G5NB-1A4-EL-HA-CF DC5 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 7A 24V | 105C, SPST 5A, 250VAC PCB RELAY | 105C, SPST 5A, 250VAC PCB RELAY | 105C, SPST 5A, 250VAC PCB RELAY |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Tray | Tray | Tray | Tray |
