G5RL-U1A-EL-HA DC5
lmages are for reference only.G5RL-U1A-EL-HA DC5
RELAY GEN PURPOSE SPST 16A 5V
Datasheet-
29,659 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
G5RL-U1A-EL-HA DC5
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G5RL-U |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 250VAC, 24VDC - Max |
| Load - Max Switching | 4000VA, 384W |
| Coil Current | 120 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | - |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | CQC, CSA, cURus, UR, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 41.7 Ohms |
| Base Product Number | G5RL-U1 |
| Product Attribute |  |
 |
 |
 |

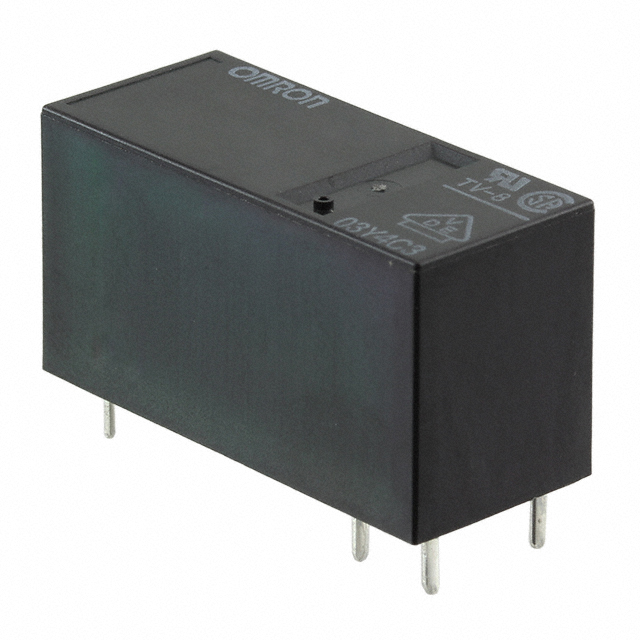

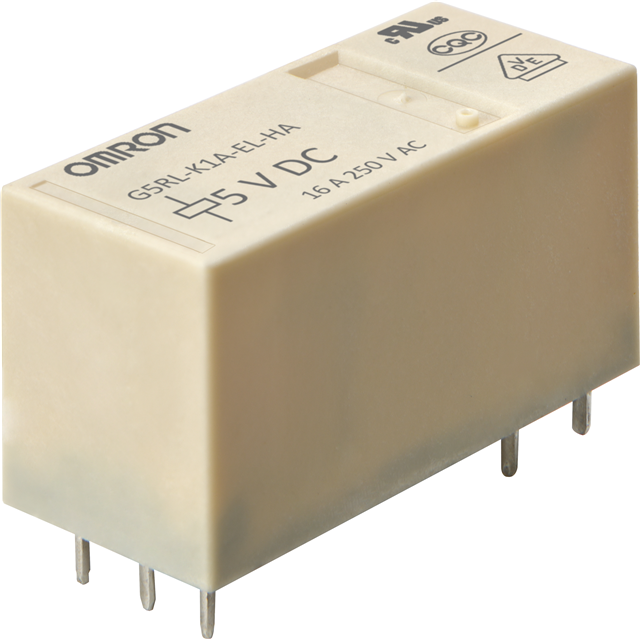

| Part Number | G5RL-U1A-EL-HA DC12 | G5RL-U1A-EL-HA DC24 | G5RL-U1A-E DC12 | G5RL-U1A-E DC24 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 16A 12V | RELAY GEN PURPOSE SPST 16A 24V | RELAY GEN PURPOSE SPST 16A 12V | RELAY GEN PURPOSE SPST 16A 24V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Tray | Tray | Tray | Tube |
