G6BU-1114P-US-P6B DC24

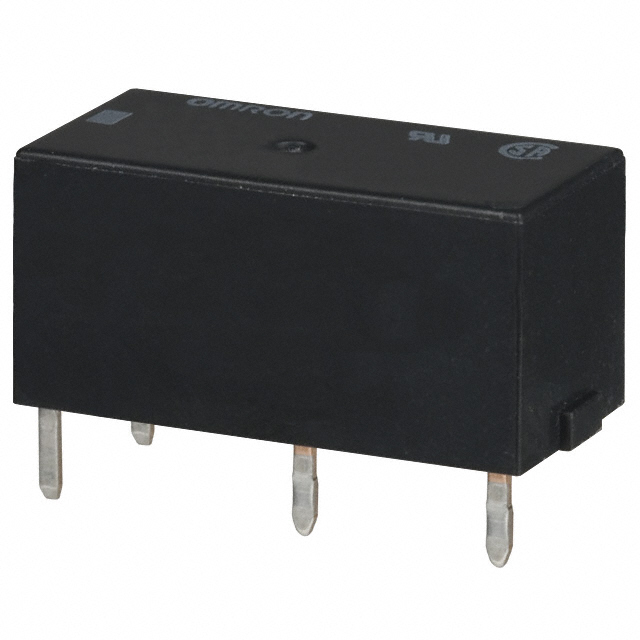

lmages are for reference only.G6BU-1114P-US-P6B DC24
RELAY GEN PURPOSE SPST 5A 24V
Datasheet-
43,309 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Socketable
G6BU-1114P-US-P6B DC24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G6B |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Load - Max Switching | 1900VA, 625W |
| Coil Current | 8.3 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | - |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material | Silver Alloy, Cadmium Free |
| Approval Agency | CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 2.88 kOhms |
| Base Product Number | G6BU-111 |
| Product Attribute |  |
 |
 |
 |
| Part Number | G6BU-1114P-US-P6B DC12 | G6BU-1114P-US-P6B DC5 | G6BU-1114P-US-P6B DC6 | G6BU-1114P-US DC12 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 5A 12V | RELAY GEN PURPOSE SPST 5A 5V | RELAY GEN PURPOSE SPST 5A 6V | RELAY GEN PURPOSE SPST 5A 12V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Bulk | Bulk | Bulk | Bulk |
