G6EK-134PL-ST-US-DC12

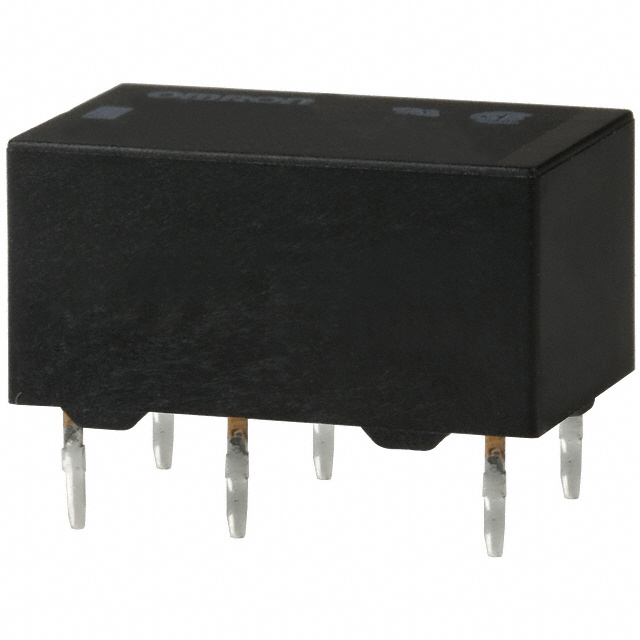

lmages are for reference only.G6EK-134PL-ST-US-DC12
RELAY GEN PURPOSE SPDT 2A 12V
Datasheet-
92,526 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) Through Hole
G6EK-134PL-ST-US-DC12
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G6E |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | - |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | G6EK-13 |
| Coil Current | 33.3 mA |
| Coil Resistance | 360 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | G6EK-134PL-ST-US-DC3 | G6EK-134PL-ST-US-DC5 | G6EK-134PL-ST-US-DC6 | G6EK-134PL-ST-US DC24 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | RELAY GENERAL PURPOSE SPDT 2A 3V | RELAY GENERAL PURPOSE SPDT 2A 5V | RELAY GENERAL PURPOSE SPDT 2A 6V | RELAY GEN PURPOSE SPDT 2A 24V |
| Series | G6E | G6E | G6E | G6E |
| Packaging | Tube | Tube | Tube | Tube |
