G6EU-134P-ST-US-DC6
lmages are for reference only.G6EU-134P-ST-US-DC6
RELAY GEN PURPOSE SPDT 3A 6V
Datasheet-
51,910 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole
G6EU-134P-ST-US-DC6
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G6E |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 6VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 750VA, 660W |
| Coil Current | 33.3 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 4.2 VDC |
| Must Release Voltage | - |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 180 Ohms |
| Base Product Number | G6EU-134 |
| Product Attribute | |
|
|
|

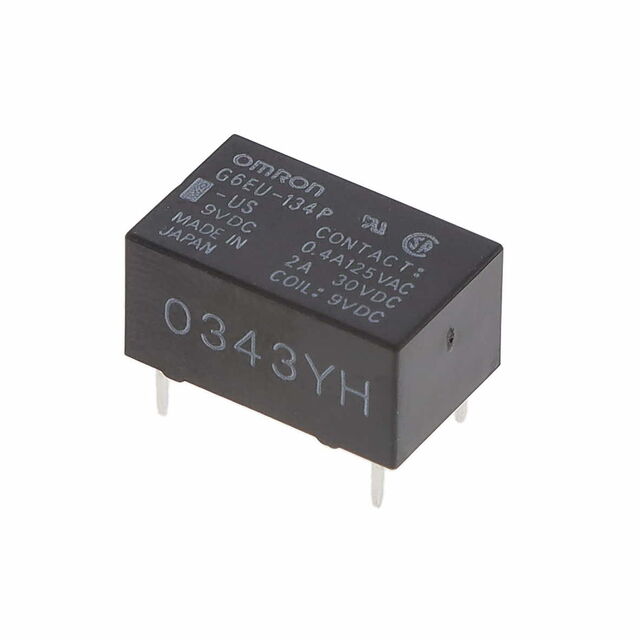

| Part Number | G6EU-134P-ST-US-DC24 | G6EU-134P-ST-US-DC3 | G6EU-134P-ST-US-DC5 | G6EU-134P-ST-US-DC9 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPDT 3A 24V | RELAY GEN PURPOSE SPDT 3A 3V | RELAY GEN PURPOSE SPDT 3A 5V | RELAY GEN PURPOSE SPDT 3A 9V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Tube | Tube | Tube | Tube |
