G7L-1A-TUB-J-CB DC12

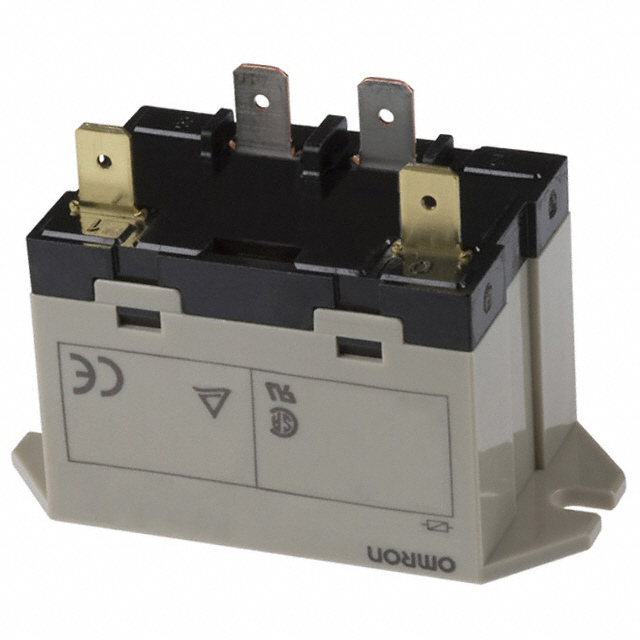

lmages are for reference only.G7L-1A-TUB-J-CB DC12
RELAY GEN PURPOSE SPST 30A 12V
Datasheet-
10,896 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
G7L-1A-TUB-J-CB DC12
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G7L |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 7500VA |
| Coil Current | 158 mA |
| Coil Type | Non Latching |
| Features | Test Button |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -25°C ~ 60°C |
| Contact Material | Silver Alloy |
| Approval Agency | CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 75 Ohms |
| Base Product Number | G7L-1A |
| Product Attribute |  |
 |
 |
 |
| Part Number | G7L-1A-TUB-J-CB DC24 | G7L-1A-TUB-J-CB AC12 | G7L-1A-TUB-J-CB AC24 | G7L-1A-TUB-J-CB-DC6 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GEN PURPOSE SPST 30A 24V | RELAY GEN PURPOSE SPST 30A 12V | RELAY GEN PURPOSE SPST 30A 24V | RELAY GEN PURPOSE SPST 30A 6V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Bulk | Bulk | Bulk | Bulk |
