G7L-2A-T-CB AC24
lmages are for reference only.G7L-2A-T-CB AC24
RELAY GEN PURPOSE DPST 25A 24V
Datasheet-
22,720 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPST-NO (2 Form A) 24VAC Coil Chassis Mount
G7L-2A-T-CB AC24
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | G7L |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 6250VA |
| Coil Current | 71 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VAC |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -25°C ~ 60°C |
| Contact Material | Silver Alloy |
| Approval Agency | CSA, TUV, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 303 Ohms |
| Base Product Number | G7L-2A |
| Product Attribute |  |
 |
 |
 |

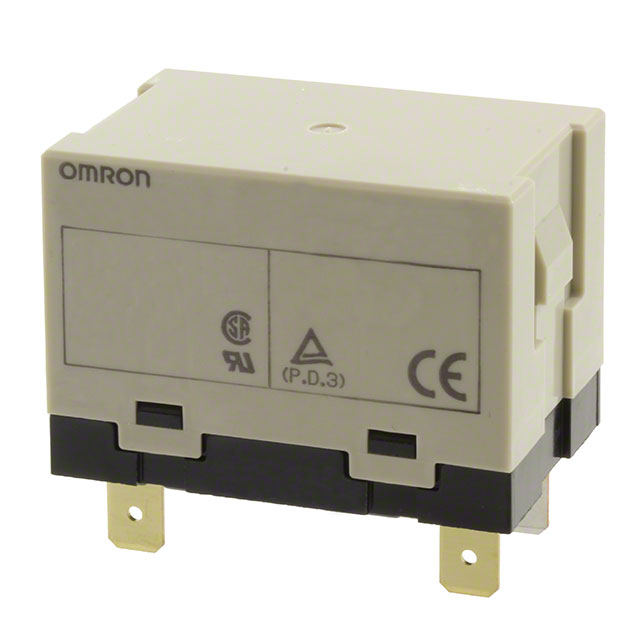

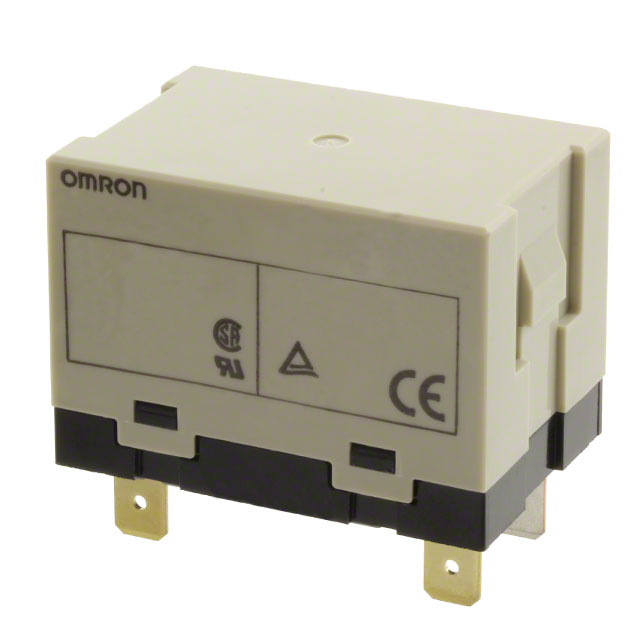

| Part Number | G7L-2A-T-CB DC12 | G7L-2A-T-CB DC24 | G7L-2A-T-CB-AC12 | G7L-2A-T-CB-DC6 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | RELAY GEN PURPOSE DPST 25A 12V | RELAY GEN PURPOSE DPST 25A 24V | RELAY GEN PURPOSE DPST 25A 12V | RELAY GEN PURPOSE DPST 25A 6V |
| Series | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Packaging | Bulk | Bulk | Bulk | Bulk |
