G8231010KBEU

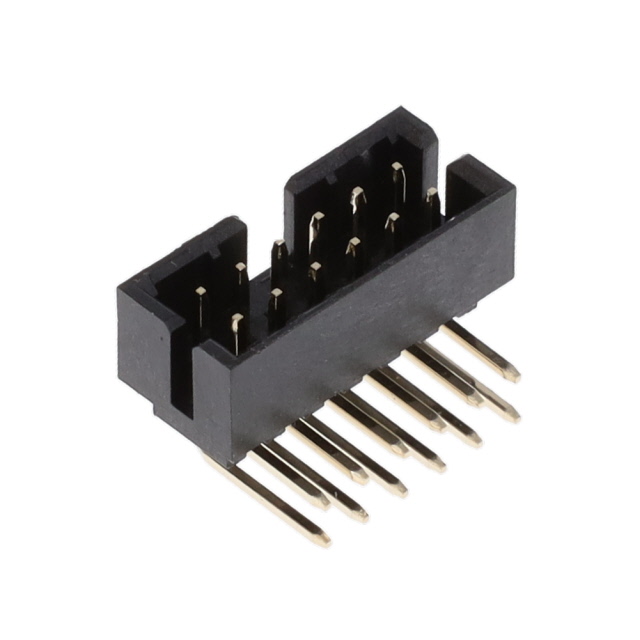

lmages are for reference only.G8231010KBEU
BOX HEADER 2.0MM PITCH STR DIP,2
Datasheet-
17,219 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 10 position 0.079" (2.00mm)
G8231010KBEU
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | G823 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.252" (6.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA4T), Nylon 4T |
| Features | Keying Slot |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 250VDC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | Flash |
| Applications | - |
| Base Product Number | G823101 |
| Product Attribute | |
 |
 |
 |
| Part Number | G800302018KYEU | G800LE300018YEU | G800LF306018EU | G800LQ302018HR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PIN HEADER 2.54MM PITCH STR DIP, | PIN HEADER 2.54MM PITCH STR DIP, | PIN HEADER 2.54MM PITCH STR DIP, | PIN HEADER 2.54MM PITCH STR DIP, |
| Series | BTB G800® | BTB G800® | BTB G800® | BTB G800® |
| Packaging | Bag | Bag | Bag | Bag |
