G832MB010801322HR
lmages are for reference only.G832MB010801322HR
BTB 80P P=0.8MM RECEPTACLE H=3.7
Datasheet-
39,164 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
G832MB010801322HR
| Category | Connectors, Interconnects - Rectangular Connectors - Arrays-Edge Type-Mezzanine Board to Board |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | Receptacle, Center Strip Contacts |
| Number of Positions | 80 |
| Pitch | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Pick and Place |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Mated Stacking Heights | 5mm, 6mm, 7mm, 8mm |
| Height Above Board | 0.146" (3.70mm) |
| Base Product Number | G832MB |
| Product Attribute |  |
 |
|
 |
| Part Number | G832MB010801022HR | G832MB010801222HR | G832MB010805022HR | G832MB010805222HR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

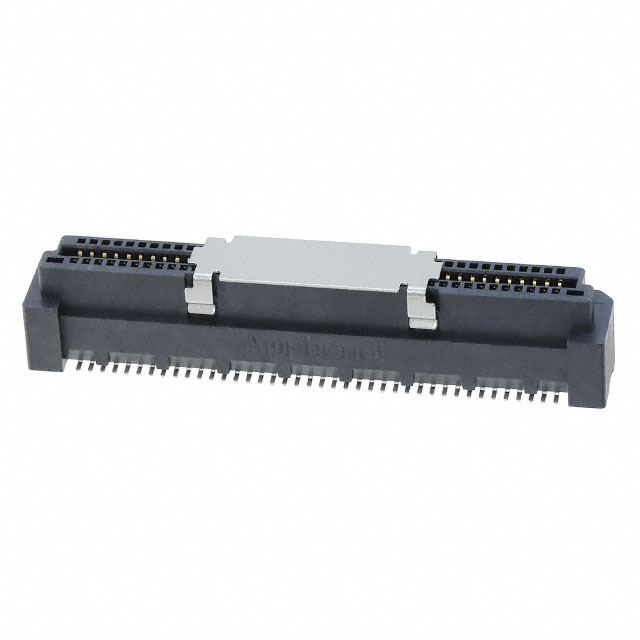

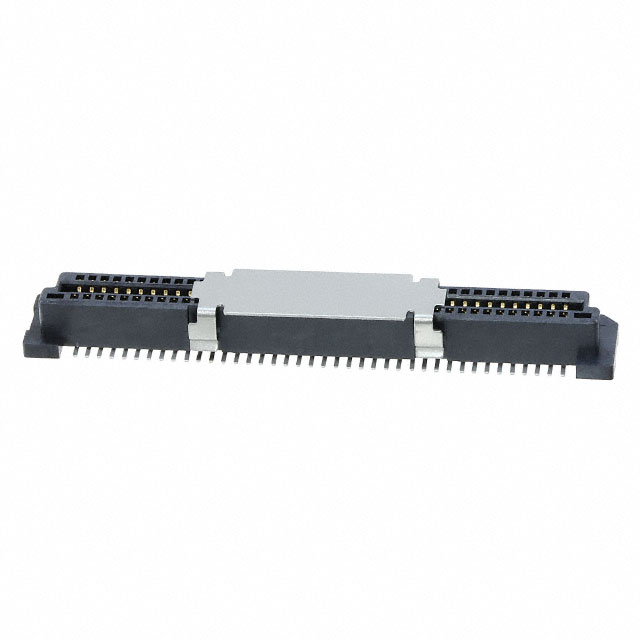

| Description | BTB 80P P=0.8MM RECEPTACLE H=3.7 | CONN RCPT 80POS SMD GOLD | BTB 80P P=0.8MM RECEPTACLE H=7.7 | CONN RCPT 80POS SMD GOLD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
