G85DT17001P1EU
lmages are for reference only.G85DT17001P1EU
G85DT SERIES, NANO IM CARD DRAWE
Datasheet-
47,178 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7 (6 + 1) Position Card Connector NANO SIM Surface Mount, Right Angle Gold
G85DT17001P1EU
| Category | Connectors, Interconnects - Memory Connectors - PC Card Sockets |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | G85DT |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Card Type | NANO SIM |
| Number of Positions | 7 (6 + 1) |
| Connector Type | Connector and Ejector |
| Insertion, Removal Method | Push In, Push Out |
| Ejector Side | Right |
| Mounting Type | Surface Mount, Right Angle |
| Features | Board Guide, Switch |
| Height Above Board | 0.054" (1.37mm) |
| Mounting Feature | Normal, Standard - Top |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Base Product Number | G85DT170 |
| Product Attribute |  |
 |
 |
 |

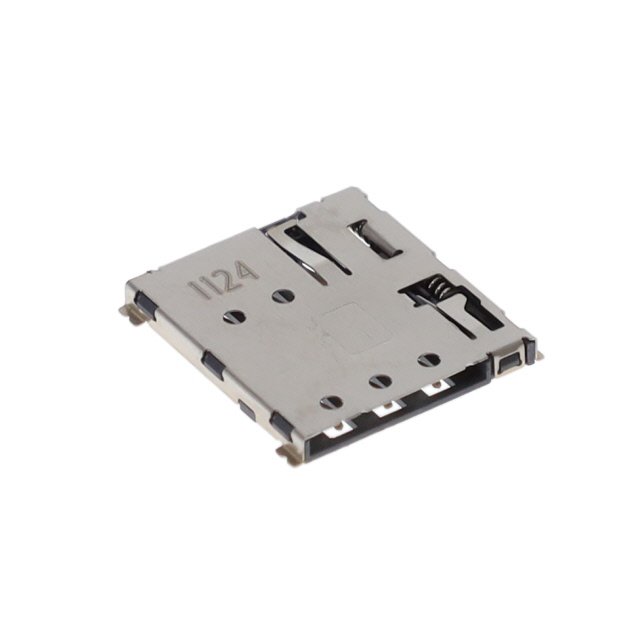

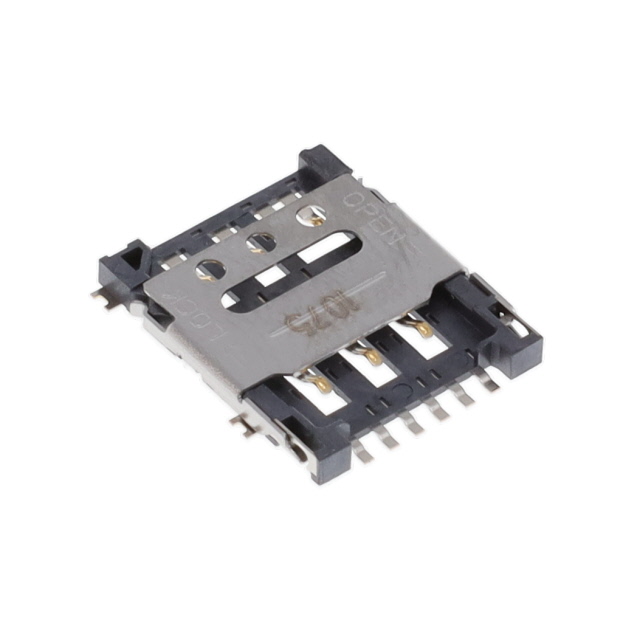

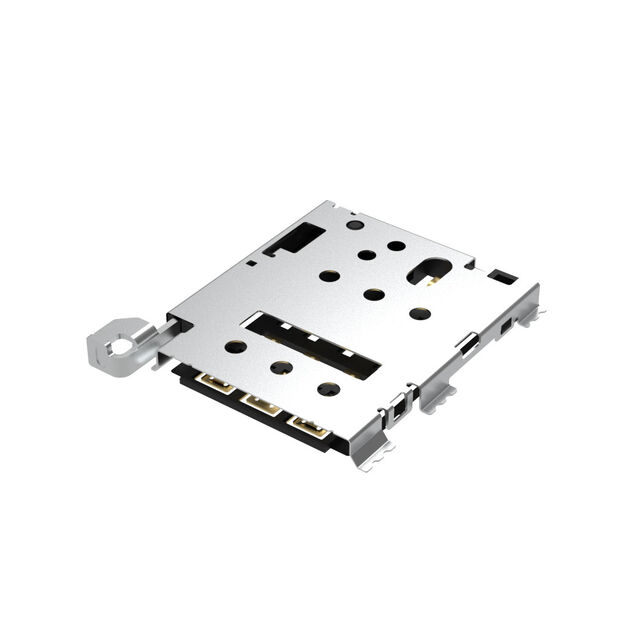

| Part Number | G85D1140022P1HR | G85D1140022SP1HR | G85D1160022HHR | G85D1171012HHR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | NANOSIM 6 POS, GF | NANO SIM CARD CONN 6POS SMT | NANO SIM HING GF | NANO SIM |
| Series | G85D | G85D | G85D | G85B |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
