G88MP101028CREU
lmages are for reference only.G88MP101028CREU
MICRO POWER PLUS 2X5 BOARD MOUNT
Datasheet-
26,418 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 10 position 0.118" (3.00mm)
G88MP101028CREU
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | Micro Power |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Board Lock |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

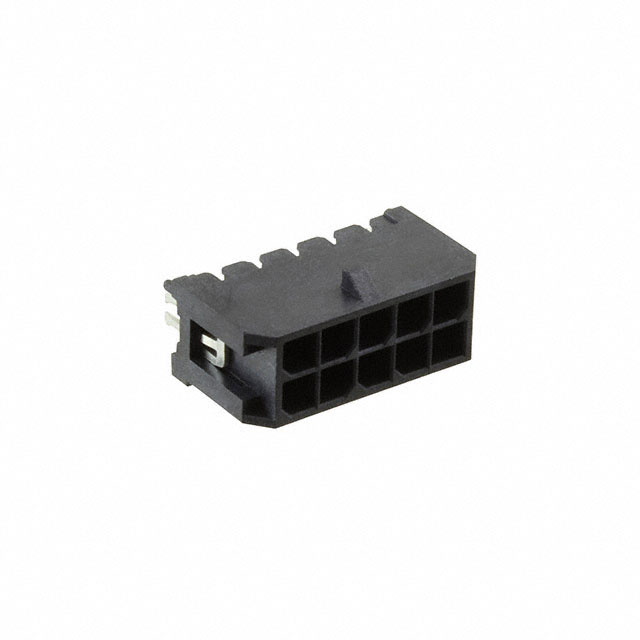

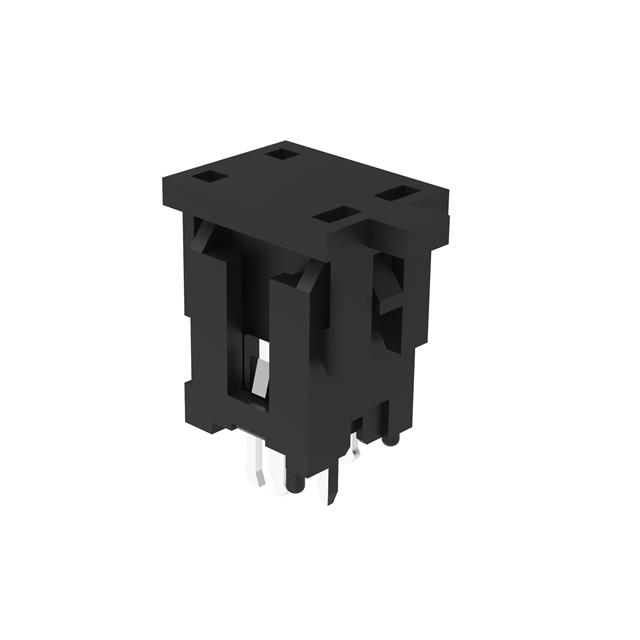

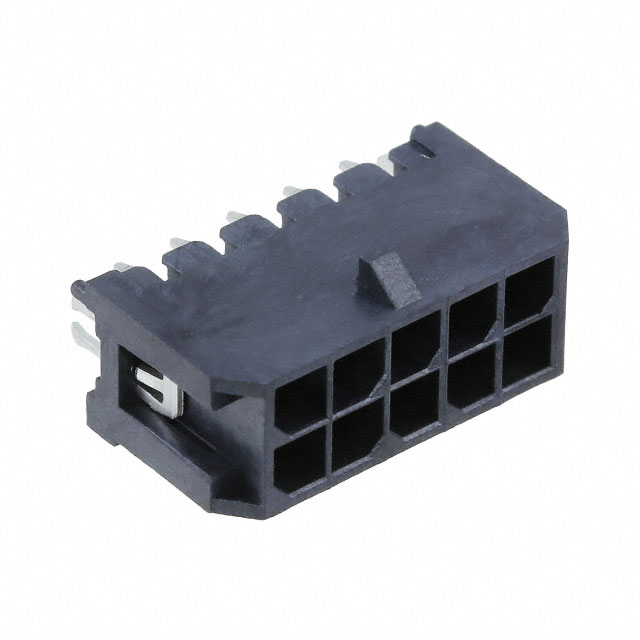

| Part Number | G88MP10102CEU | G88MP10102KEU | G88MP021020CREU | G88MP021028CREU |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER VERT 10POS 3MM | CONN HEADER VERT 10POS 3MM | MICRO POWER PLUS 2X1 BOARD MOUNT | MICRO POWER PLUS 2X1 BOARD MOUNT |
| Series | Micro Power | Micro Power | Micro Power | Micro Power |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
