G97R26312HR
lmages are for reference only.G97R26312HR
CONN EDGE DUAL FML 148POS 0.024
Datasheet-
71,741 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
148 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
G97R26312HR
| Category | Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Series | Mini Cool Edge 0.60mm |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | - |
| Number of Positions | 148 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.024" (0.60mm) |
| Read Out | Dual |
| Features | Board Guide, Pick and Place, Solder Retention |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | Cantilever |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -40°C ~ 85°C |
| Material - Insulation | Thermoplastic |
| Base Product Number | - |
| Termination Rows | - |
| Product Attribute |  |
 |
 |
 |

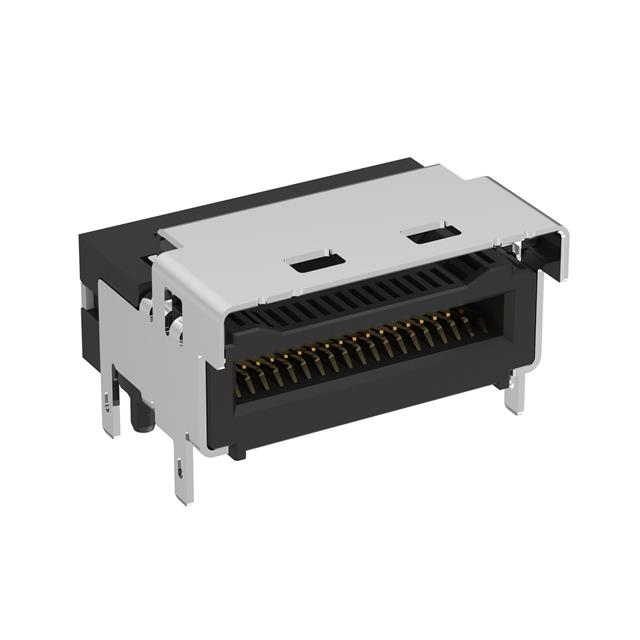

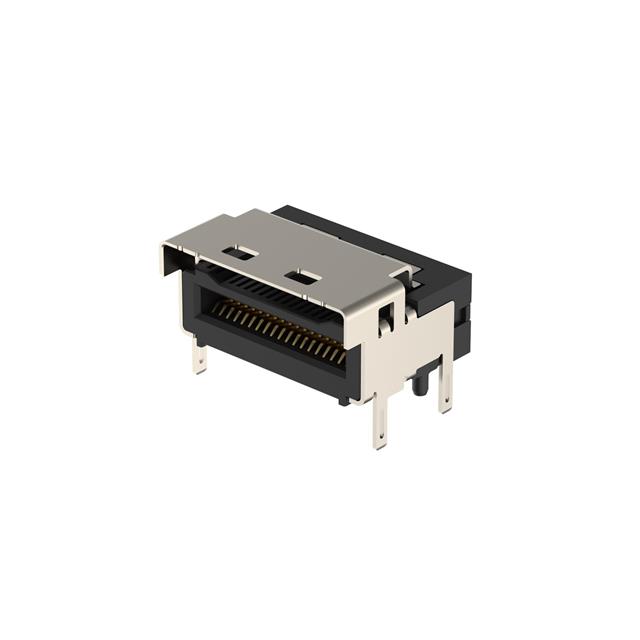

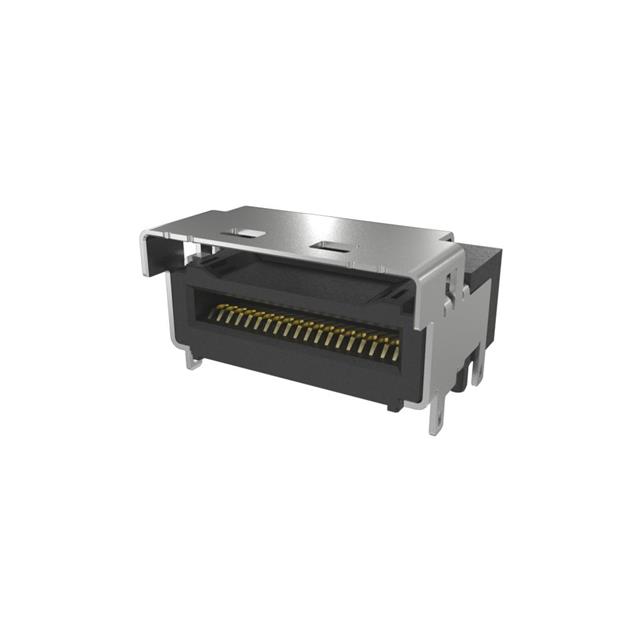

| Part Number | G97R21312HR | G97R21322HR | G97R21332HR | G97R22312HR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | CONN EDGE DUAL FMALE 38POS 0.024 | MCIO, R/A, 85OHM, 38 PIN, 30U", | MCIO R/A FOR PCIE, SMT TYPE,PCIE | CONN EDGE DUAL FMALE 74POS 0.024 |
| Series | Mini Cool Edge 0.60mm | Mini Cool Edge 0.60mm | Mini Cool Edge 0.60mm | Mini Cool Edge 0.60mm |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
