G98V12322HR

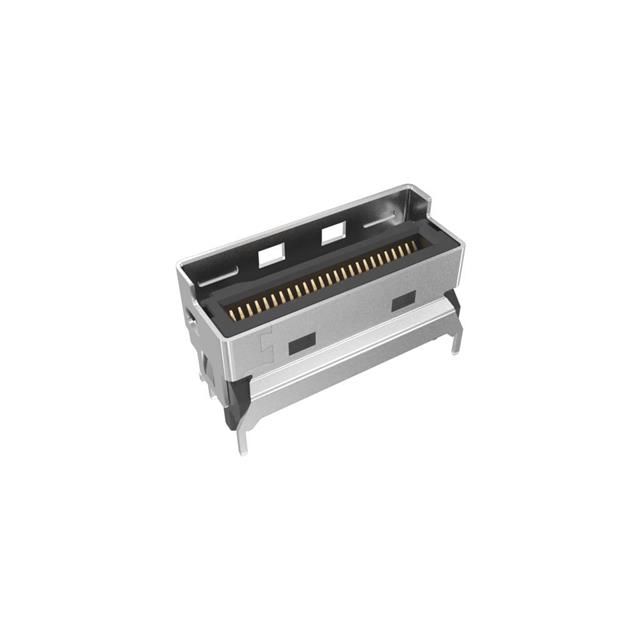

lmages are for reference only.G98V12322HR
CONN EDGE DUAL FMALE 74POS 0.024
Datasheet-
31,235 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
74 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
G98V12322HR
| Category | Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | Mini Cool Edge 0.60mm |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 37 |
| Number of Positions | 74 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.024" (0.60mm) |
| Read Out | Dual |
| Features | Board Guide, Pick and Place, Solder Retention |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | - |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -40°C ~ 85°C |
| Material - Insulation | Thermoplastic |
| Termination Rows | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

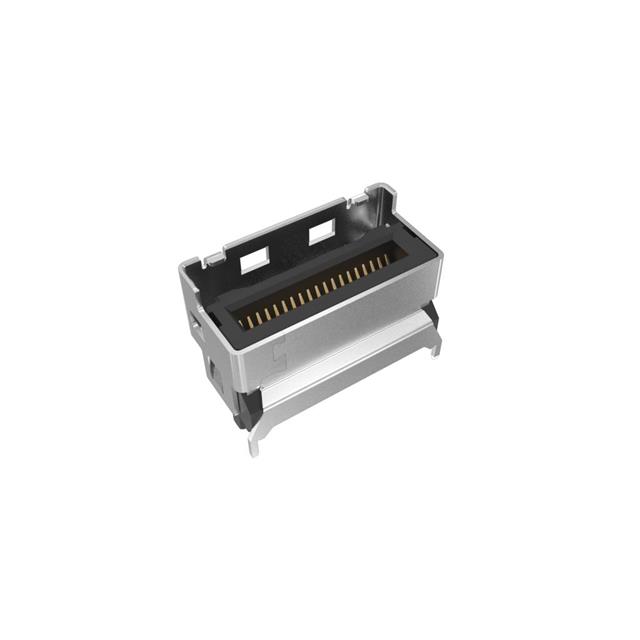

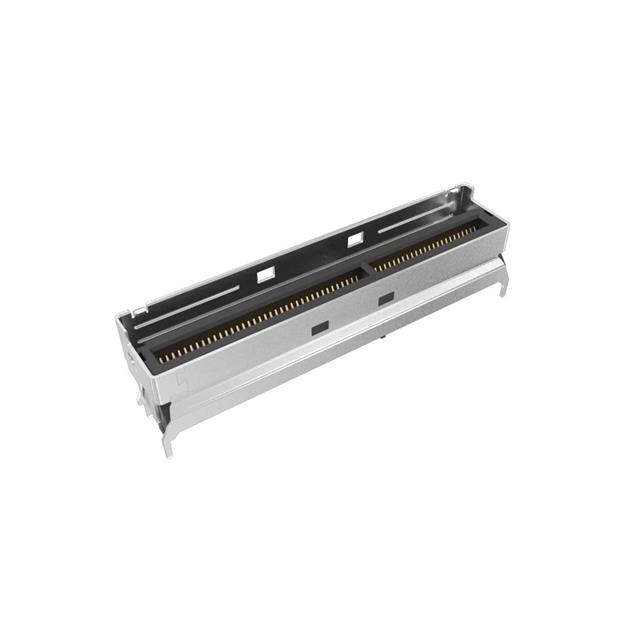

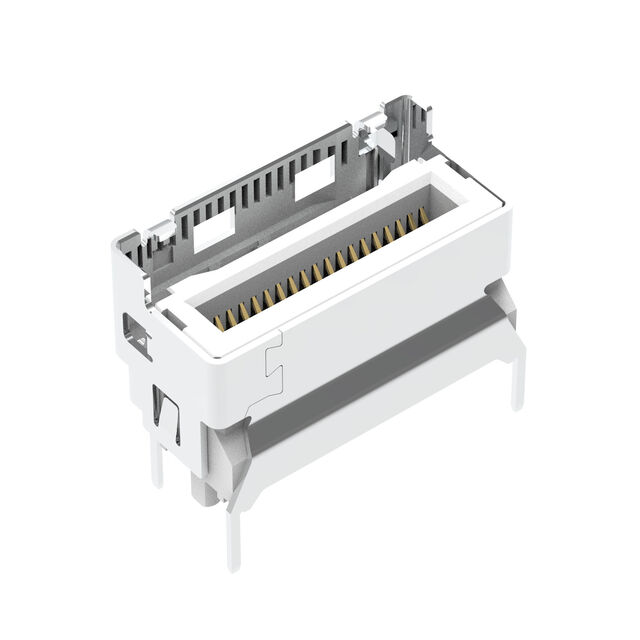

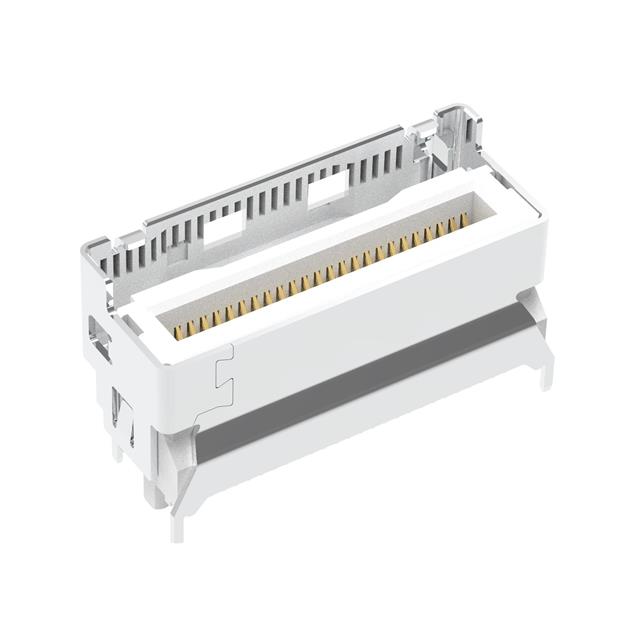

| Part Number | G98V11312HR | G98V11332HR | G98V14322HR | G98V15312HR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CONN EDGE DUAL FMALE 38POS 0.024 | CONN EDGE DUAL FMALE 38POS 0.024 | CONN EDGE DUAL FML 124POS 0.024 | MCIO, V/T, 95OHM, 50 PIN, 30U", |
| Series | Mini Cool Edge 0.60mm | |||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
