GBLC12C

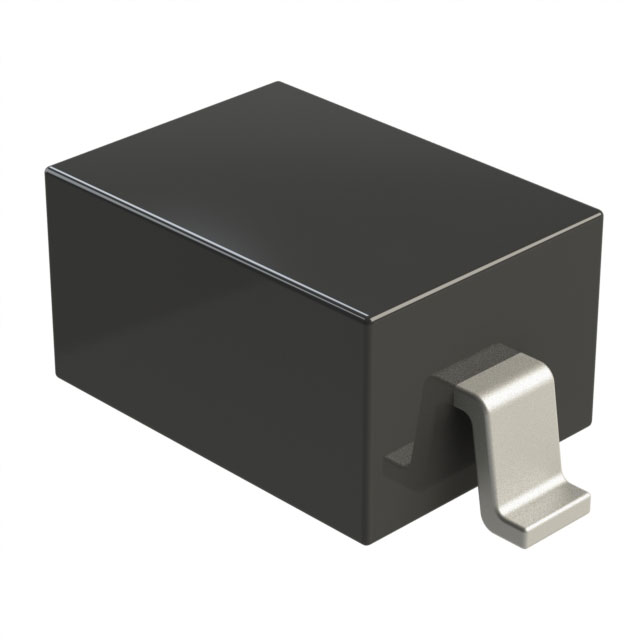

lmages are for reference only.GBLC12C
TVS DIODE 12V VBR MIN 13.3V SO
DatasheetSC-76, SOD-323
82,544 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30V Clamp 6A Ipp Tvs Diode Surface Mount SOD-323
GBLC12C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 30V |
| Current - Peak Pulse (10/1000µs) | 6A |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | USB |
| Capacitance @ Frequency | 0.8pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | GBLC12C | GBLC12CI-LF-T7 | GBLC03C | GBLC03CD3B-TP |
| Manufacturer | MDD | UMW | MDD | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12VWM 19VC SOD323 | ESD SUPPRESSOR DIODE TVS BI-DIR | TVS DIODE 3VWM 7.0VC SOD323 | BRIDGE RECTIFIERS |
| Series | MDD | UMW | MDD | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
