GBPC1506W
lmages are for reference only.GBPC1506W
15A, 600V, STANDARD BRIDGE RECTI
Datasheet4-Square, GBPC-W
92,161 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 600 V Through Hole GBPC-W
GBPC1506W
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | GBPC15 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 15 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 7.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, GBPC-W |
| Supplier Device Package | GBPC-W |
| Base Product Number | GBPC1506 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

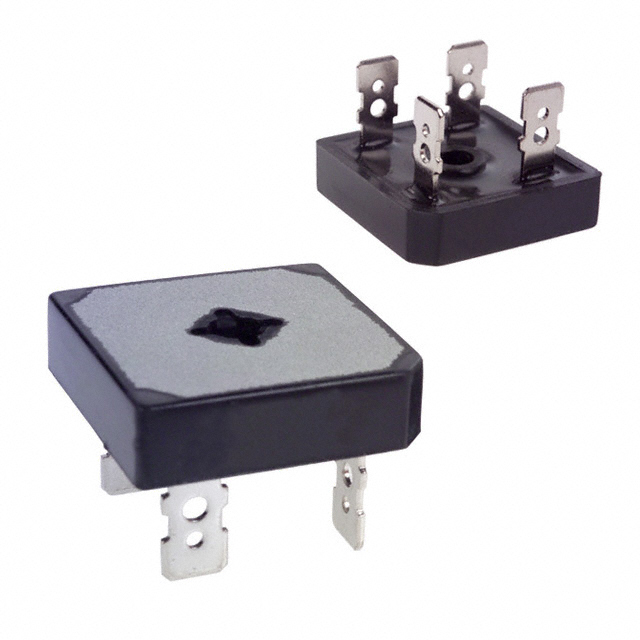

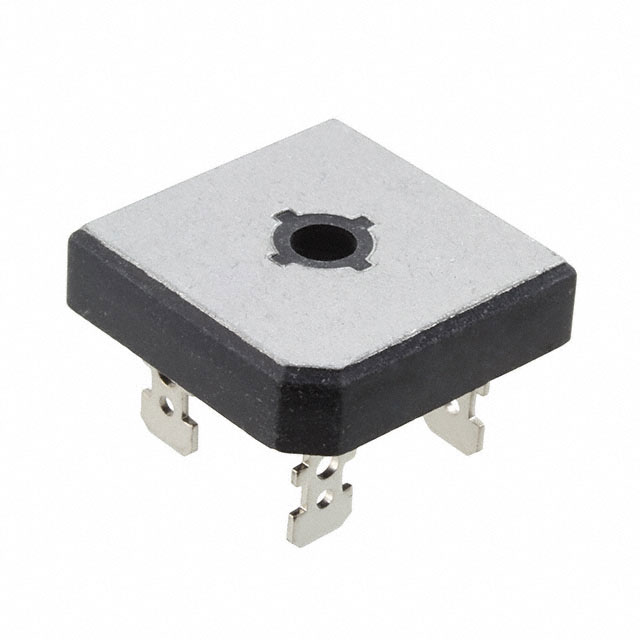

| Part Number | GBPC1506 | GBPC1506 | GBPC1506 | GBPC1506-BP |
| Manufacturer | Taiwan Semiconductor Corporation | Diodes Incorporated | onsemi | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 15A, 600V, STANDARD BRIDGE RECTI | BRIDGE RECT 1PHASE 600V 15A GBPC | BRIDGE RECT 1PHASE 600V 15A GBPC | Interface |
| Series | GBPC | - | - | - |
| Packaging | Tray | Tray | Bulk | Bulk |
