GBPC3508W

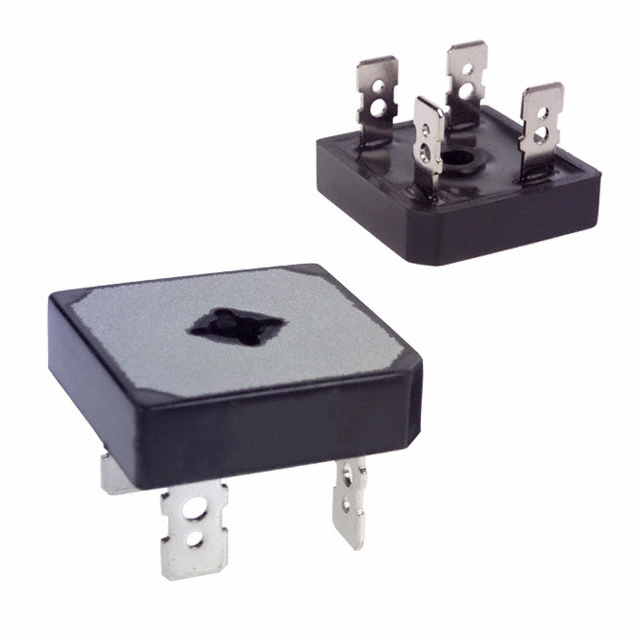

lmages are for reference only.GBPC3508W
BRIDGE RECT 1PH 800V 35A GBPC-W
Datasheet4-Square, GBPC-W
15,491 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole GBPC-W
GBPC3508W
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, GBPC-W |
| Supplier Device Package | GBPC-W |
| Base Product Number | GBPC3508 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | GBPC3508 | GBPC3508 | GBPC3508 | GBPC3508 |
| Manufacturer | SMC Diode Solutions | onsemi | Taiwan Semiconductor Corporation | HY Electronic (Cayman) Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 800V 35A GBPC | BRIDGE RECT 1PHASE 800V 35A GBPC | 35A, 800V, STANDARD BRIDGE RECTI | GLASS PASSIVATED BRIDGE RECTIFIE |
| Series | - | - | GBPC35 | - |
| Packaging | Tape & Box (TB) | Bulk | Tray | Bulk |
