GBPC5008W
lmages are for reference only.GBPC5008W
BRIDGE RECT 1P 800V 50A GBPC-W
Datasheet4-Square, GBPC-W
38,337 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 800 V Through Hole GBPC-W
GBPC5008W
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 25 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, GBPC-W |
| Supplier Device Package | GBPC-W |
| Base Product Number | GBPC5008 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

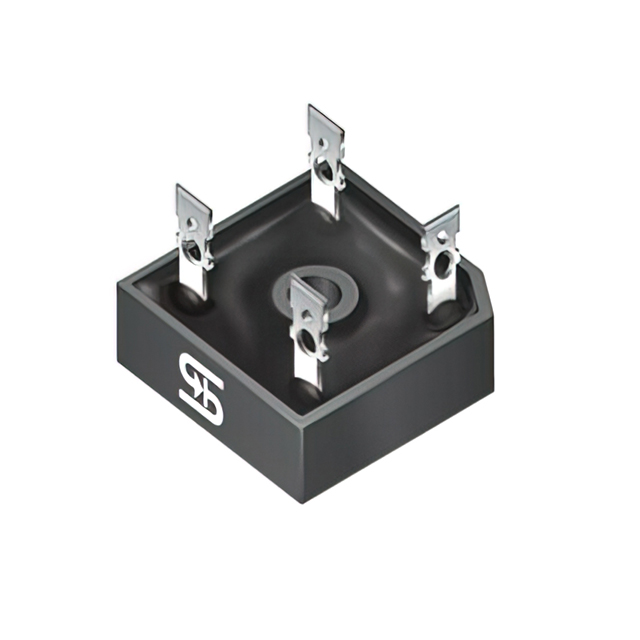

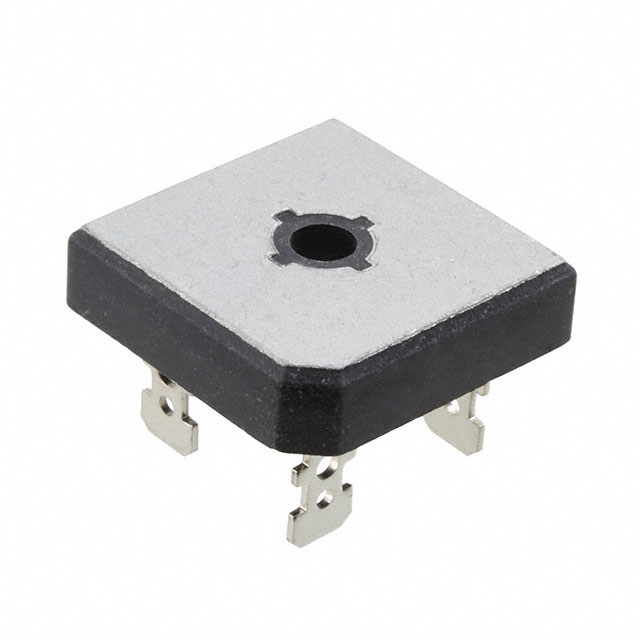

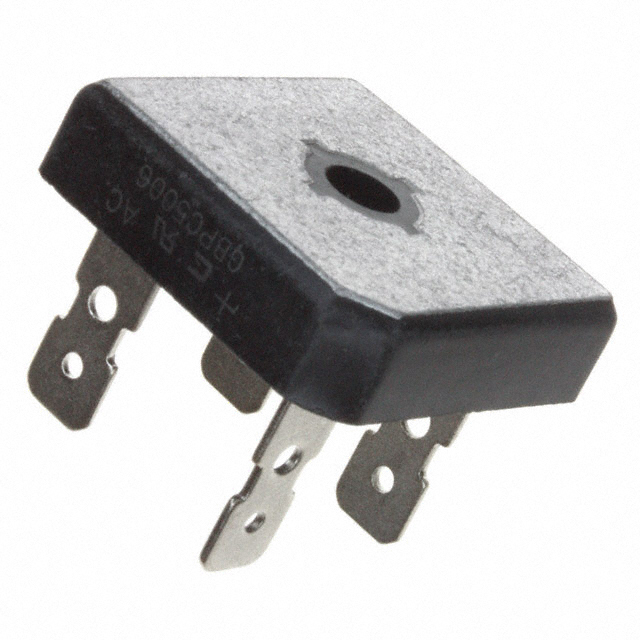

| Part Number | GBPC5008 | GBPC5008-BP | GBPC5008-G | GBPC5008H-BP |
| Manufacturer | Taiwan Semiconductor Corporation | Micro Commercial Co | Comchip Technology | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 50A, 800V, STANDARD BRIDGE RECTI | Interface | BRIDGE RECT 1PHASE 800V 50A GBPC | BRIDGE RECTIFIERS |
| Series | GBPC50 | - | - | - |
| Packaging | Tray | Bulk | Tray | Tape & Reel (TR) |
