GBU1010_T0_00601

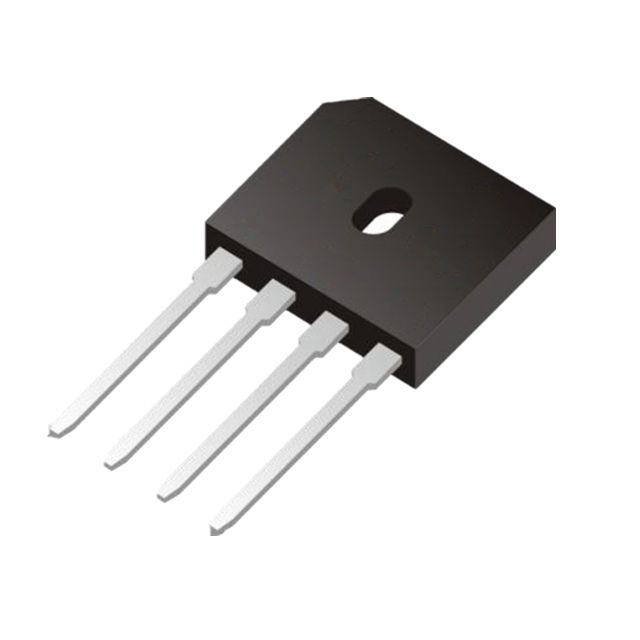

lmages are for reference only.GBU1010_T0_00601
GBU PACKAGE, 10A/1000V STANDARD
Datasheet4-SIP, GBU
11,916 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU-2
GBU1010_T0_00601
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 10 A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU-2 |
| Base Product Number | GBU1010 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | GBU1010 | GBU1010 | GBU1010 | GBU1010 |
| Manufacturer | Diodes Incorporated | HY Electronic (Cayman) Limited | SMC Diode Solutions | MDD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | BRIDGE RECT 1PHASE 1KV 10A GBU | GLASS PASSIVATED BRIDGE RECTIFIE | BRIDGE RECT 1PHASE 1KV 10A GBU | Bridge Rectifier GBU 1KV 10A |
| Series | - | GBU | - | GBU |
| Packaging | Tube | Tube | Tube | Box |
