GBU2506F(HF)

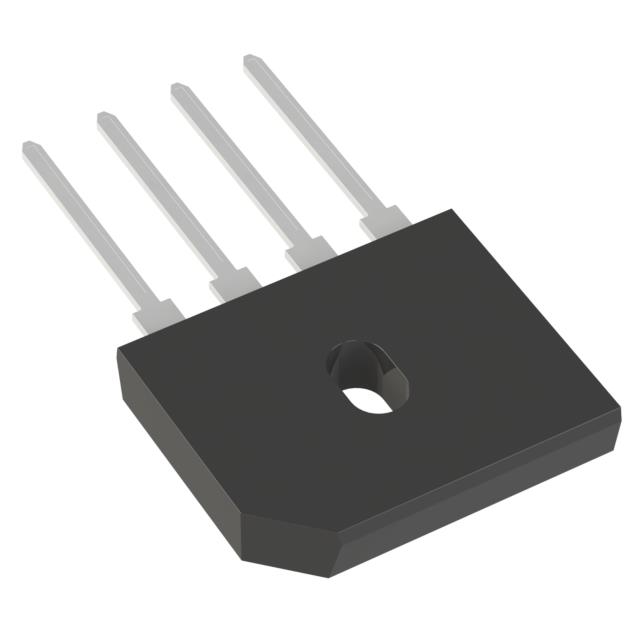

lmages are for reference only.GBU2506F(HF)
GLASS PASSIVATED BRIDGE RECTIFIE
Datasheet4-SIP, GBU
60,012 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 600 V Through Hole GBU
GBU2506F(HF)
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | HY Electronic (Cayman) Limited |
| Series | GBU |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 25 A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 12.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GBU25005-BP | GBU25005-G | GBU25005-HF | GBU2501-BP |
| Manufacturer | Micro Commercial Co | Comchip Technology | Comchip Technology | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | Interface | BRIDGE RECT 1PHASE 50V 25A GBU | RECTIFIER BRIDGE GPP 50V 25A GBU | Interface |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Tube | Bulk |
