GBU2510
lmages are for reference only.GBU2510
GLASS PASSIVATED BRIDGE RECTIFIE
Datasheet4-SIP, GBU
36,007 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU
GBU2510
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | HY Electronic (Cayman) Limited |
| Series | GBU |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 25 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 12.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

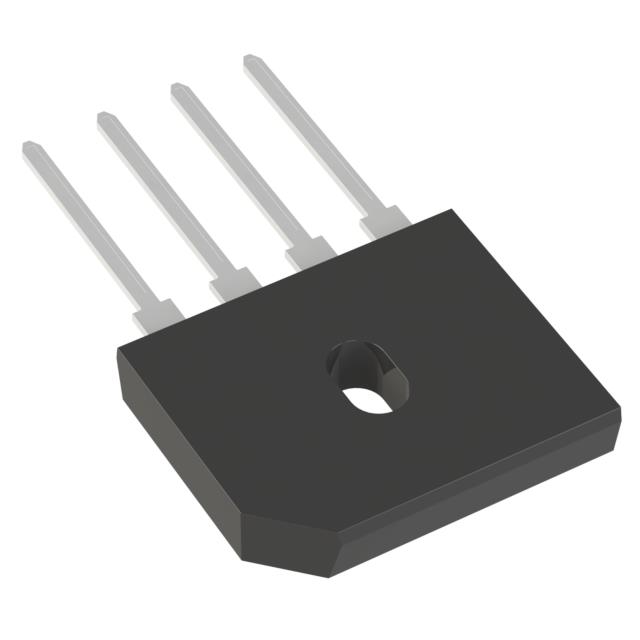

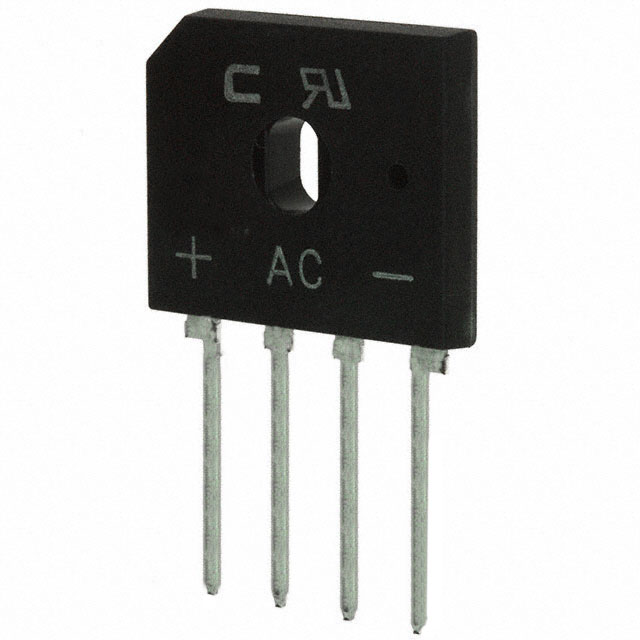

| Part Number | GBU2510 | GBU2510-BP | GBU2510-G | GBU2510-HF |
| Manufacturer | SMC Diode Solutions | Micro Commercial Co | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BRIDGE,1000V25A, PACKAGE GBU | Interface | BRIDGE RECT 1PHASE 1KV 25A GBU | RECTIFIER BRIDGE GPP 1000V 25A G |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
