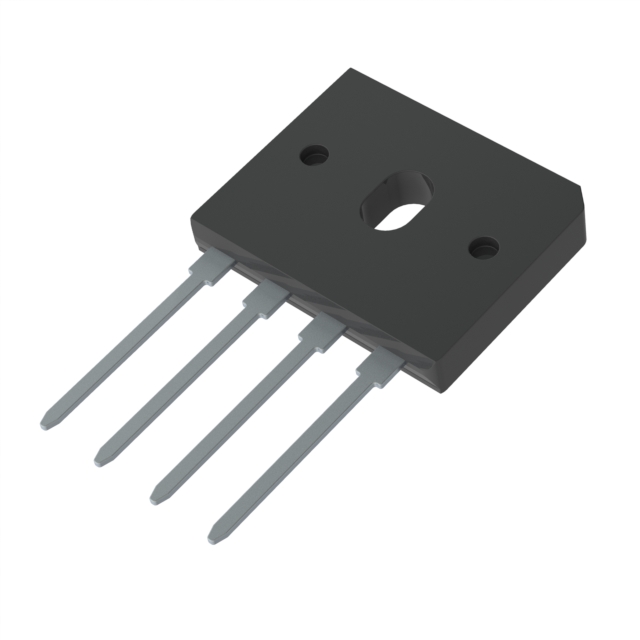

GBU3510H_T0_00601
lmages are for reference only.GBU3510H_T0_00601
GBU PACKAGE, 15A/1000V HIGH TJ 1
Datasheet4-SIP, GBU
21,652 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Through Hole GBU-2
GBU3510H_T0_00601
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU-2 |
| Base Product Number | GBU3510 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

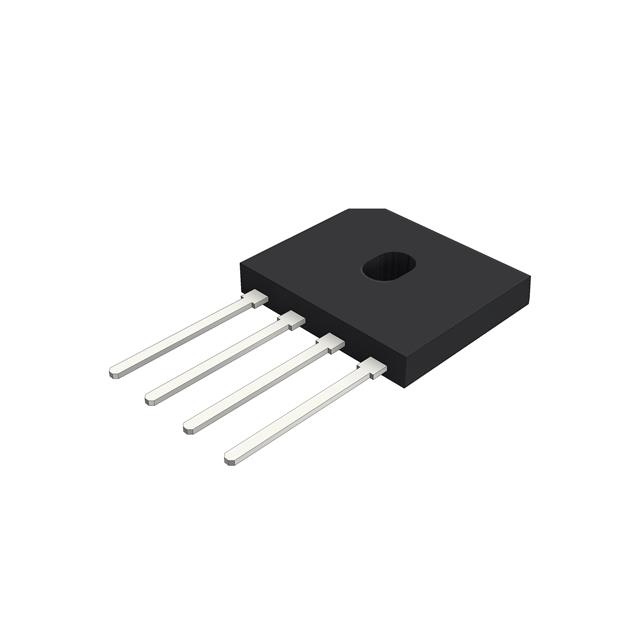

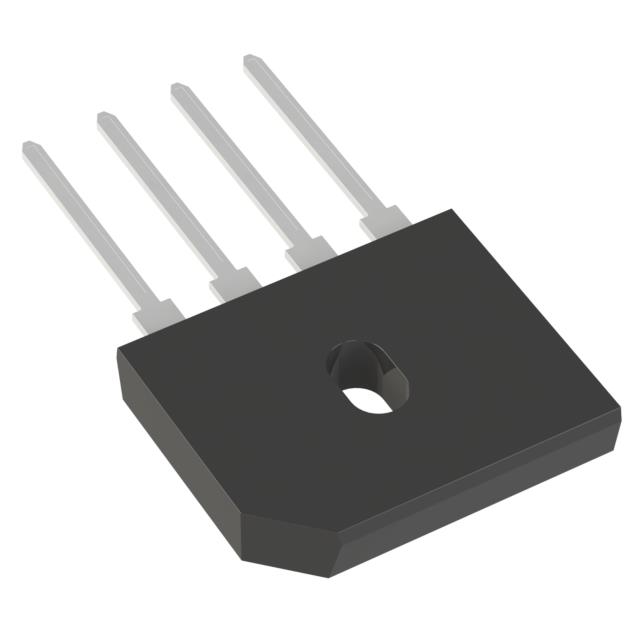

| Part Number | GBU3510 | GBU3510-BP | GBU3510_T0_00601 | GBJA2510_T0_00301 |
| Manufacturer | HY Electronic (Cayman) Limited | Micro Commercial Co | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | GLASS PASSIVATED BRIDGE RECTIFIE | BRIDGE RECTIFIERS | GBU PACKAGE, 35A/1000V STANDARD | GLASS PASSIVATED LOW PROFILE BRI |
| Series | GBU | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
