Product CatalogPart Number
GBU6D
Manufacturer
Diotec SemiconductorDescription
BRIDGE 1-PH GBU 200V 6A 150DEG
Datasheet
DatasheetPackage
4-SIP, GBU
In Stock
71,292 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GBU6D
GBU6D

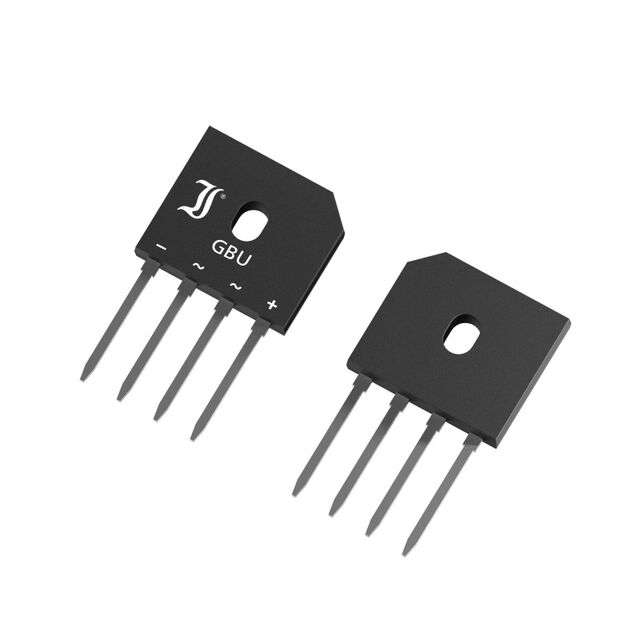

lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 200 V Through Hole GBU
Quick Inquiry
GBU6D
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 4.2 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 6 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBU |
| Supplier Device Package | GBU |
| Base Product Number | GBU6 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | GBU6005 | GBU6005 | GBU6005-G | GBU6005G |
| Manufacturer | SMC Diode Solutions | Diodes Incorporated | Comchip Technology | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1PHASE 50V 6A GBU | BRIDGE RECT 1PHASE 50V 6A GBU | BRIDGE RECT 1PHASE 50V 6A GBU | BRIDGE RECT 1PHASE 50V 6A GBU |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Tube |
