GC05MPS33J
lmages are for reference only.GC05MPS33J
DIODE SIL CARB 3.3KV 5A TO263-7
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
69,713 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 3300 V 5A Surface Mount TO-263-7
GC05MPS33J
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | SiC Schottky MPS™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 3300 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | - |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | - |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Supplier Device Package | TO-263-7 |
| Operating Temperature - Junction | 175°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

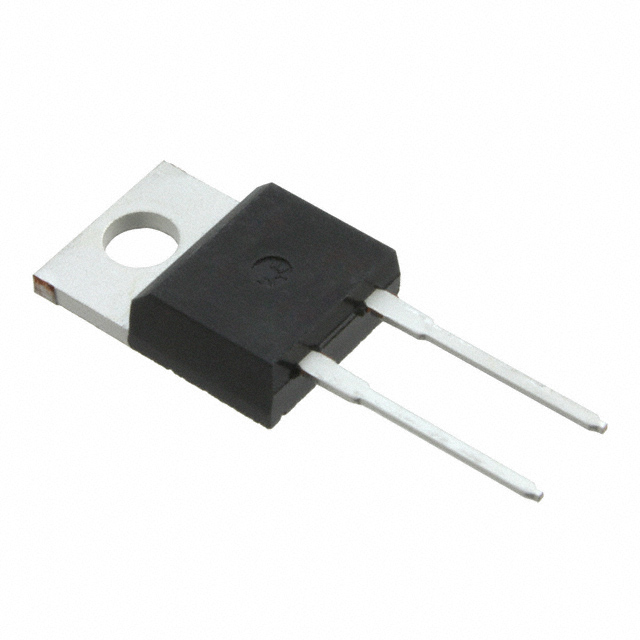

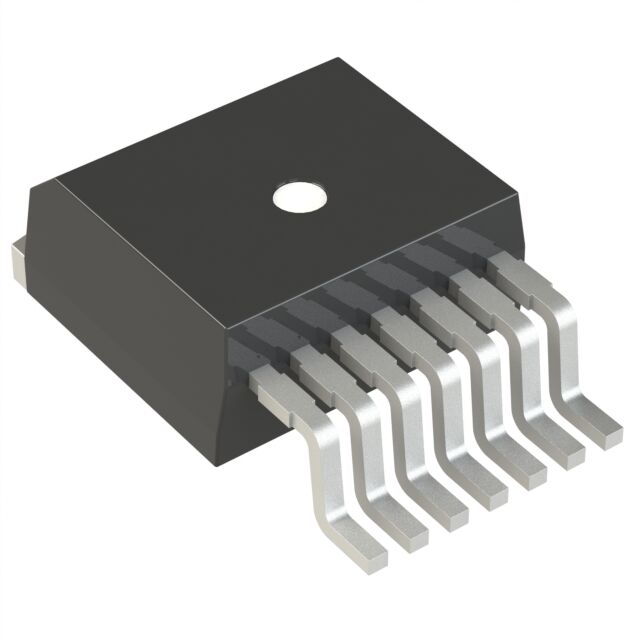

| Part Number | GC05MPS12-220 | GC05MPS12-252 | GC05MPS33J-TR | VS-HFA25PB60-N3 |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | Vishay General Semiconductor - Diodes Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SIL CARB 1.2KV 29A TO220-2 | DIODE SIL CARB 1.2KV 27A TO252-2 | 3300V 5A TO-263-7 SIC SCHOTTKY M | DIODE GP 600V 25A TO247AC |
| Series | - | SiC Schottky MPS™ | MPS™ | HEXFRED® |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
