GC20N65F
lmages are for reference only.GC20N65F
N650V,RD(MAX)<170M@10V,VTH2.5V~4
DatasheetTO-220-3 Full Pack
24,363 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 20A (Tc) 40W (Tc) Through Hole TO-220F
GC20N65F
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | SuperJunction |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1603 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GC20N65FD | GC20N65M | GC20N65Q | GC20N65QD |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

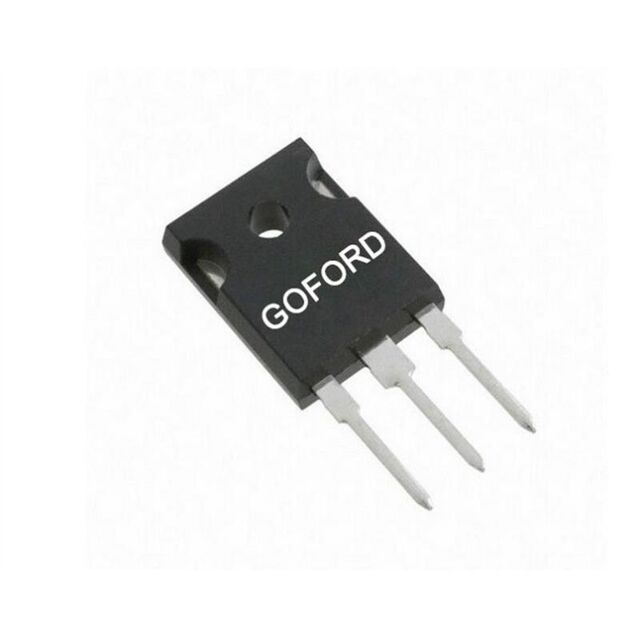

| Description | MOSFET N-CH 650V 20A 40W TO-220 | MOSFET N-CH 650V 20A 151W 180M( | N650V,RD(MAX)<170M@10V,VTH2.5V~4 | MOSFET N-CH 650V 20A TO-247 |
| Series | SuperJunction | - | Cool MOS™ | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
