GMSB0522132EU

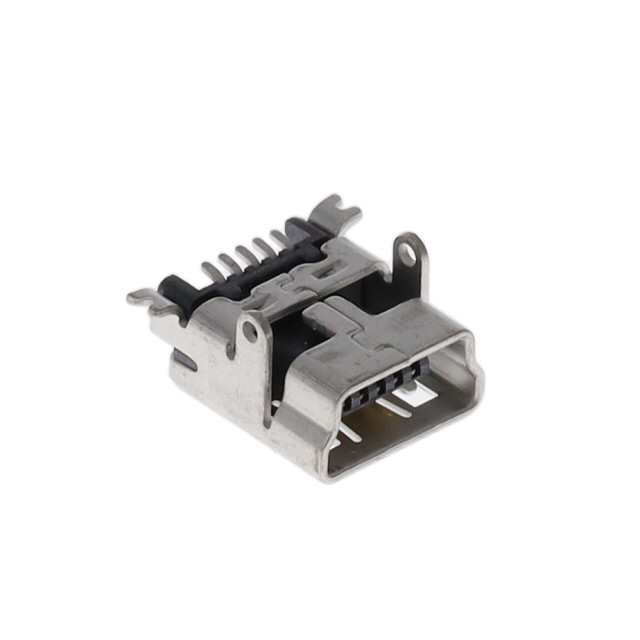

lmages are for reference only.GMSB0522132EU
MINI USB 5POS , B TYPE , R/A , D
Datasheet-
33,474 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB - mini B USB 2.0 Receptacle Connector 5 Position Through Hole, Right Angle
GMSB0522132EU
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB - mini B |
| Number of Contacts | 5 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1A, 1.5A |
| Voltage - Rated | 30VDC |
| Mating Cycles | 5000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | GMSB052 |
| Product Attribute |  |
 |
 |
 |

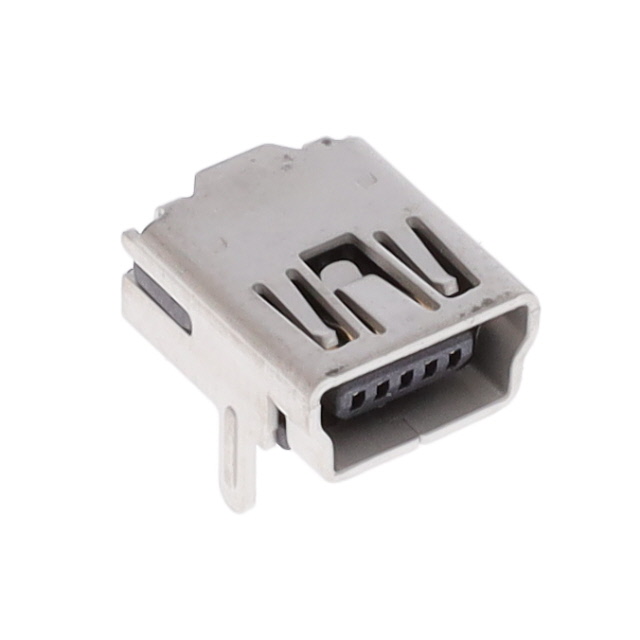

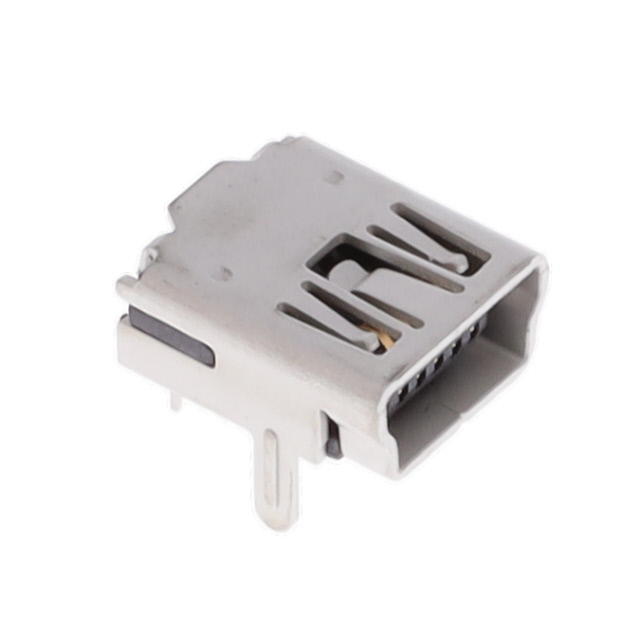

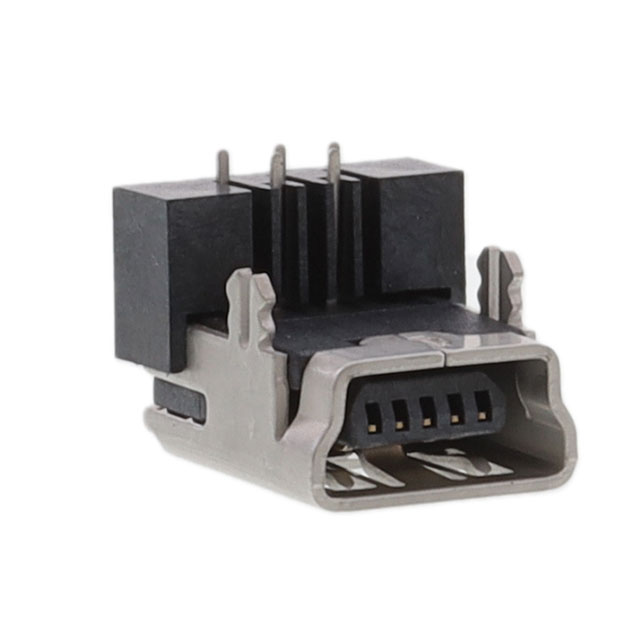

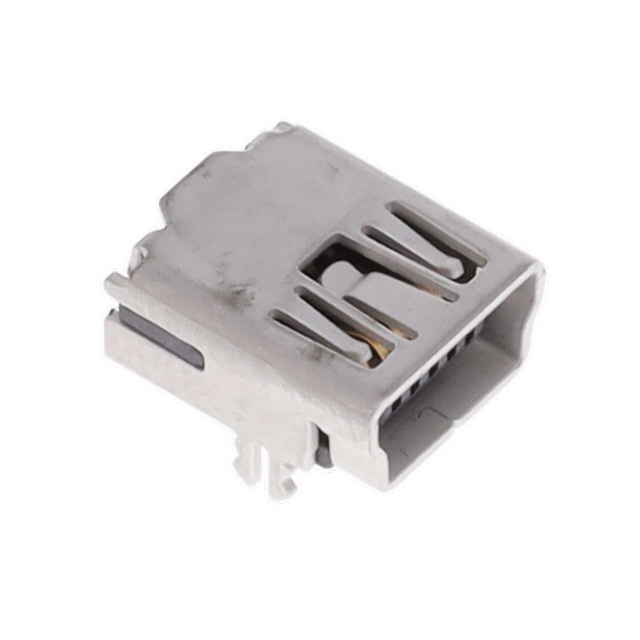

| Part Number | GMSB0522132Y8EU | GMSB0522102Y1EU | GMSB0522102Y7EU | GMSB0522152Y5EU |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | MINI USB 5POS , B TYPE , R/A , D | MINI USB 5POS , B TYPE , R/A , D | MINI USB 5POS , B TYPE , R/A , D | MINI USB 5POS , B TYPE , R/A , D |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tray |
