Product CatalogPart Number
GN1J
Manufacturer
Good-Ark SemiconductorDescription
RECTIFIER, GENERAL PURPOSE, 1A,
Datasheet
DatasheetPackage
DO-214AC, SMA
In Stock
71,785 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GN1J
GN1J

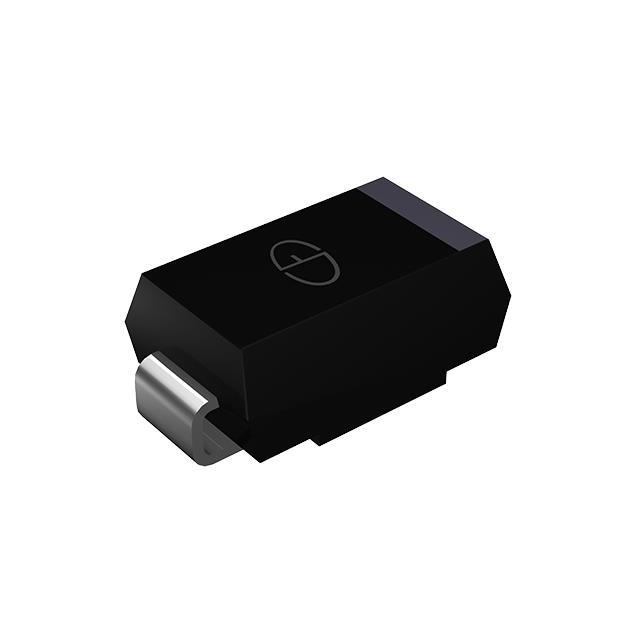

lmages are for reference only.Payment Methods
Delivery Services
Diode 600 V 1A Surface Mount DO-214AC (SMA)
Quick Inquiry
GN1J
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.8 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | GN1A | GN1G | GN1K | GN1M |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RECTIFIER, GENERAL PURPOSE, 1A, | RECTIFIER, GENERAL PURPOSE, 1A, | RECTIFIER, GENERAL PURPOSE, 1A, | RECTIFIER, GENERAL PURPOSE, 1A, |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
