Product CatalogPart Number
GP2D030A120B
Manufacturer
SemiQDescription
DIODE SIL CARB 1.2KV 30A TO247-2
Datasheet
DatasheetPackage
TO-247-2
In Stock
99,639 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GP2D030A120B
GP2D030A120B
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 30A Through Hole TO-247-2
Quick Inquiry
GP2D030A120B
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SemiQ |
| Series | Amp+™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 30 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 60 µA @ 1200 V |
| Capacitance @ Vr, F | 1905pF @ 1V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | GP02-20-E3/53 | GP02-20-E3/54 | GP02-20-E3/73 | GP02-20HE3/53 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 2KV 250MA DO204AL | DIODE GEN PURP 2KV 250MA DO204AL | DIODE GEN PURP 2KV 250MA DO204AL | DIODE GEN PURP 2KV 250MA DO204AL |
| Series | - | SUPERECTIFIER® | SUPERECTIFIER® | SUPERECTIFIER® |
| Packaging | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) | Tape & Box (TB) |
Customers Also Interested in
Recommended Products
GP2D003A060C
SemiQ
GP2D003A065A
SemiQ
GP2D005A120A
SemiQ
GP2D005A120C
SemiQ

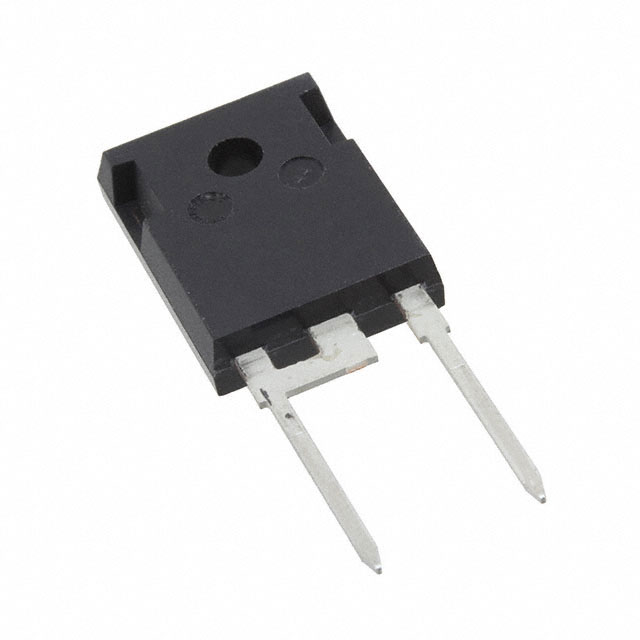

GP2D005A170B
