GPA805HC0G

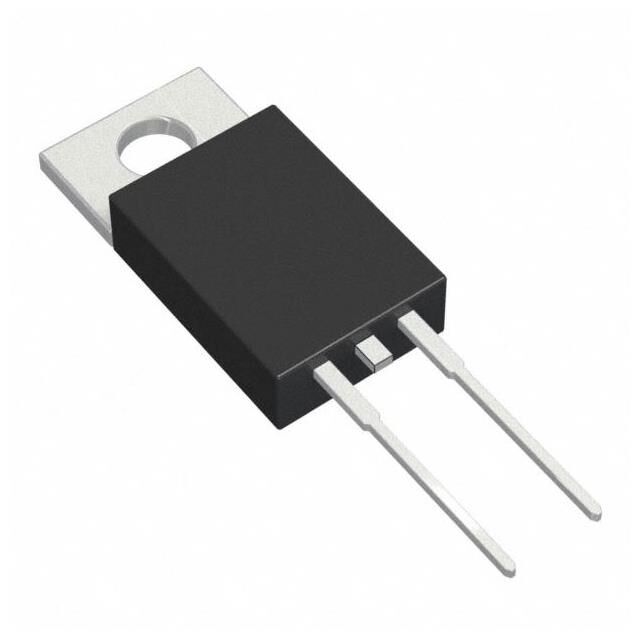

lmages are for reference only.GPA805HC0G
DIODE GEN PURP 600V 8A TO220AC
DatasheetTO-220-2
33,864 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 600 V 8A Through Hole TO-220AC
GPA805HC0G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 8 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Capacitance @ Vr, F | 50pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | GPA805 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
|

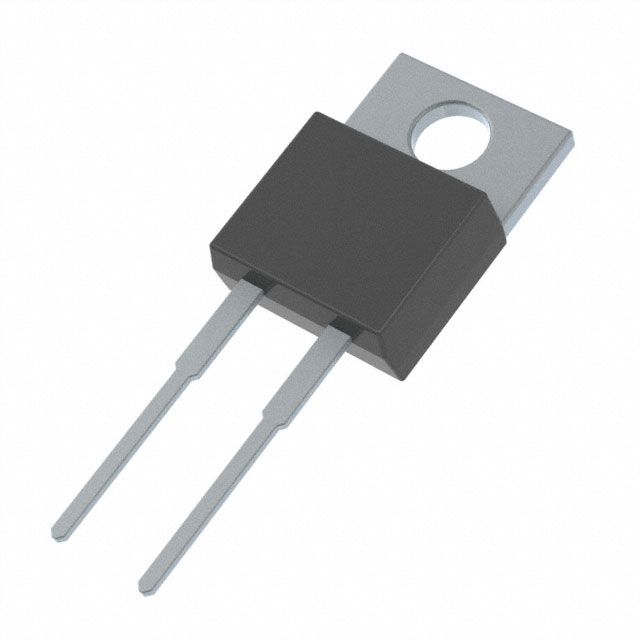

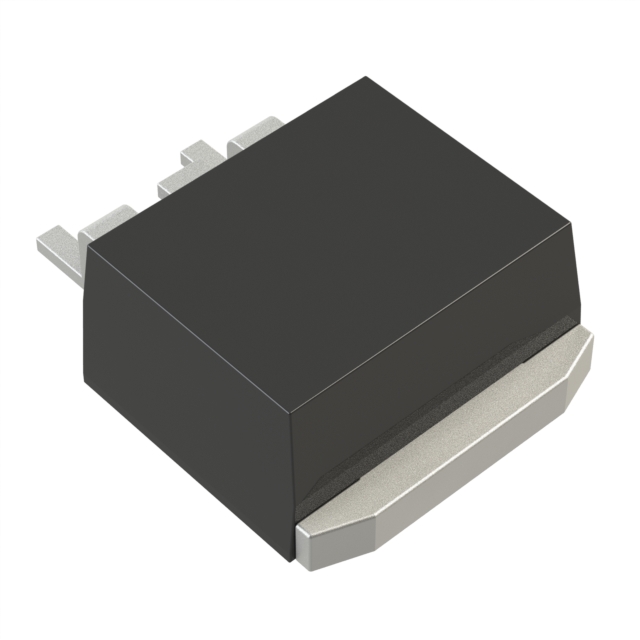

| Part Number | GPA805H | GPA801 | GPA801-BP | GPA801DT-TP |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE GEN PURP 600V 8A TO220AC | 8A, 50V, STANDARD RECTIFIER | DIODE GEN PURP 50V 8A TO220AC | DIODE GEN PURP 50V 8A D2PAK |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Tape & Reel (TR) |
