Product CatalogPart Number
GQC5R500
Manufacturer
Sprague-GoodmanDescription
CAP TRIMMER 0.6-5.5PF 750V TH
Datasheet
DatasheetPackage
-
In Stock
48,163 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GQC5R500
GQC5R500
lmages are for reference only.Payment Methods
Delivery Services
0.6 ~ 5.5pF Trimmer Capacitor 750 V Side Through Hole
Quick Inquiry
GQC5R500
Specifications
| Category | Capacitors - Trimmers-Variable Capacitors - |
| Manufacturer | Sprague-Goodman |
| Series | PISTONCAP® |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance Range | 0.6 ~ 5.5pF |
| Adjustment Type | Side |
| Voltage - Rated | 750 V |
| Dielectric Material | Quartz |
| Q @ Freq | 1500 @ 20MHz |
| Size / Dimension | 0.312" Dia (7.92mm) |
| Height - Seated (Max) | 0.562" (14.27mm) |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Features | General Purpose |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

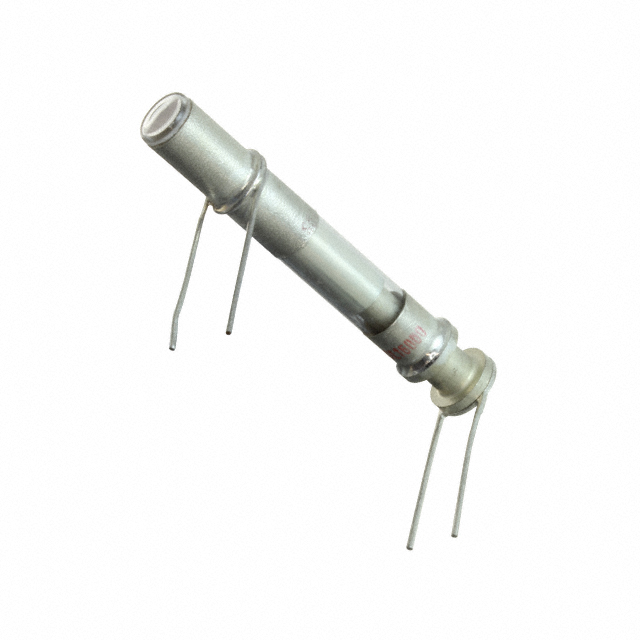

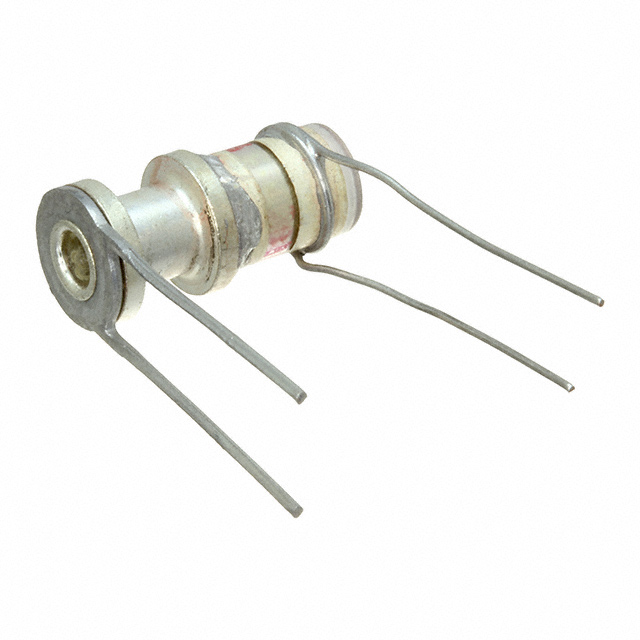

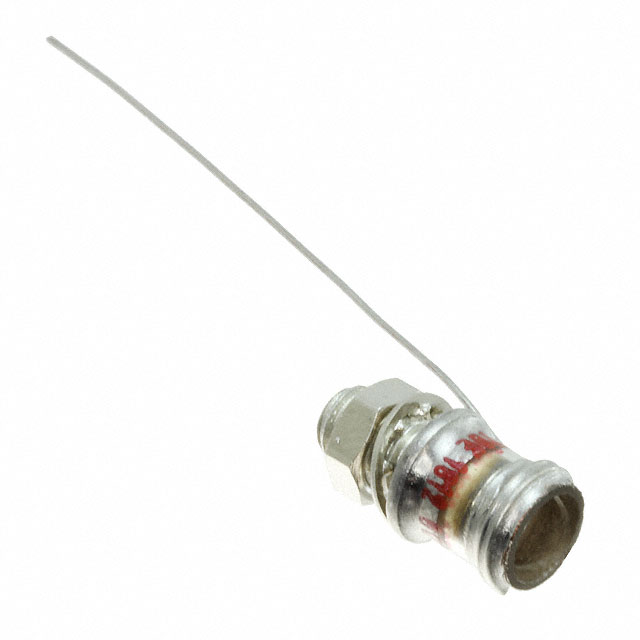

| Part Number | GQL1R800 | GQL16000 | GQP1R800 | NMKM10 |
| Manufacturer | Sprague-Goodman | Sprague-Goodman | Sprague-Goodman | Knowles Voltronics |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CAP TRIMMER 0.6-1.8PF 750V TH | CAP TRIMMER 0.8-16PF 1250V TH | CAP TRIM 0.6-1.8PF 750V PNL MNT | CAP FILM TRIM |
| Series | PISTONCAP® | PISTONCAP® | PISTONCAP® | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
