GSB3115373T1F3HR

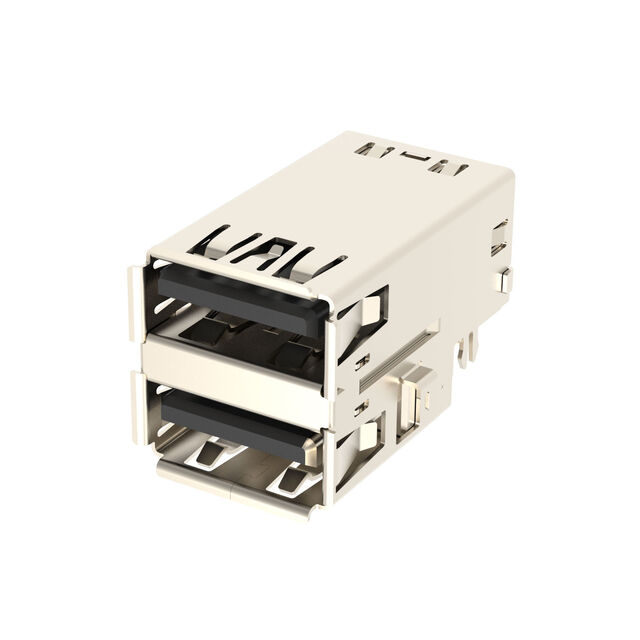

lmages are for reference only.GSB3115373T1F3HR
USB3.0, A, RECEPTACLE, RIGHT ANG
Datasheet-
24,121 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-A (USB TYPE-A), Stacked USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 18 Position Board Edge, Cutout; Through Hole, Right Angle
GSB3115373T1F3HR
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Number of Contacts | 18 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Mounting Type | Board Edge, Cutout; Through Hole, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | - |
| Ingress Protection | - |
| Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1.8A |
| Voltage - Rated | 30VDC |
| Mating Cycles | 5000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel (SK7) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Base Product Number | GSB3115 |
| Product Attribute |  |
 |
 |
 |
| Part Number | GSB3111211HR | GSB3111311HR | GSB3111315HR | GSB311131HR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | USB3.0, A, RECEPTACLE, RIGHT ANG | USB3.0, A, RECEPTACLE, RIGHT ANG | USB3.0, A, RECEPTACLE RIGHT ANGL | CONN RCPT USB3.0 TYPEA 9POS R/A |
| Series | GSB3 | GSB3 | GSB3 | GSB3 |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
