GSB422137EU
lmages are for reference only.GSB422137EU
CONN RCPT USB3.1 TYPEB 9POS VERT
Datasheet-
31,343 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
USB-B (USB TYPE-B) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 9 Position Through Hole
GSB422137EU
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | GSB4 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | USB-B (USB TYPE-B) |
| Number of Contacts | 9 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Mounting Type | Through Hole |
| Mounting Feature | Vertical |
| Termination | Solder |
| Features | Board Lock |
| Ingress Protection | - |
| Operating Temperature | - |
| Number of Ports | 1 |
| Current Rating (Amps) | - |
| Voltage - Rated | - |
| Mating Cycles | 5000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Brass |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Base Product Number | GSB42 |
| Product Attribute |  |
 |
 |
 |

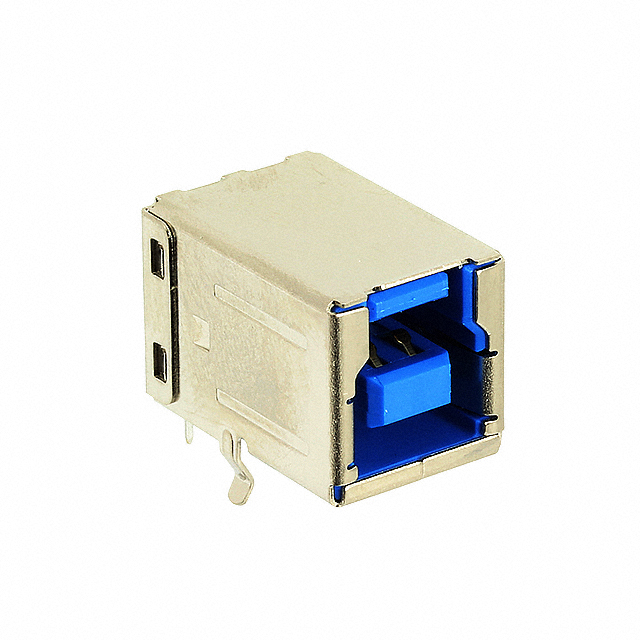

| Part Number | GSB4211311WEU | GSB4111312HR | GSB3111311HR | GSB11120KEU |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT USB3.1 TYPEB 9POS R/A | CONN RCPT USB3.1 TYPEA 9POS R/A | USB3.0, A, RECEPTACLE, RIGHT ANG | USB2.0 A TYPE,DIP,STRAIGHT |
| Series | GSB4 | GSB4 | GSB3 | GSB1 |
| Packaging | Tray | Tray | Tray | Tray |
