GSD090012SEU
lmages are for reference only.GSD090012SEU
GSD090012SEU-SD CARD CONN,9 POS,
Datasheet-
64,295 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11 (9 + 2) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
GSD090012SEU
| Category | Connectors, Interconnects - Memory Connectors - PC Card Sockets |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | GSD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Card Type | Secure Digital - SD |
| Number of Positions | 11 (9 + 2) |
| Connector Type | Connector and Ejector |
| Insertion, Removal Method | Push In, Push Out |
| Ejector Side | - |
| Mounting Type | Surface Mount, Right Angle |
| Features | Board Guide, Switch |
| Height Above Board | 0.116" (2.95mm) |
| Mounting Feature | Normal, Standard - Top |
| Contact Finish | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Base Product Number | GSD0900 |
| Product Attribute |  |
 |
 |
 |

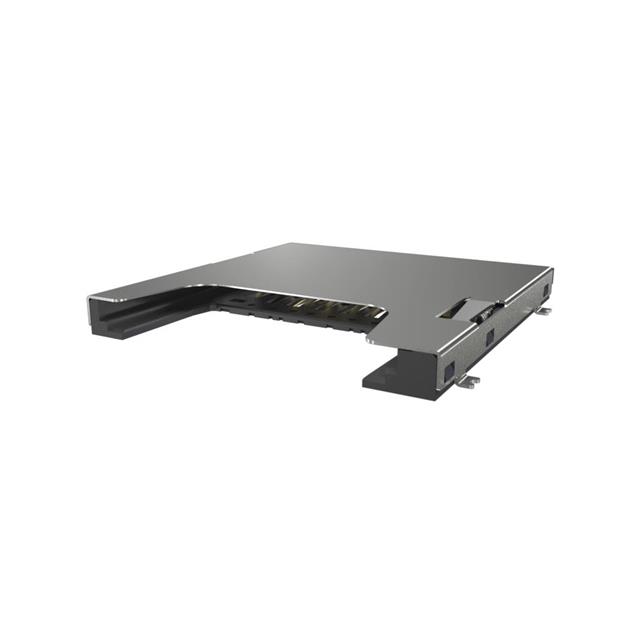

| Part Number | GSD09002SDEU | GSD09002SEU | GSD090144HR | GSD2100107BHR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | GSD09002SDEU-SD,NORMAL,9POS P/P | CONN MICRO SD CARD PUSH-PUSH | SD CARD PUSH-PUSH TYPE | SD EXPRESS, PUSH PUSH, H=3.15MM, |
| Series | GSD | GSD | GSD | GSD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
