GSEDC5B250

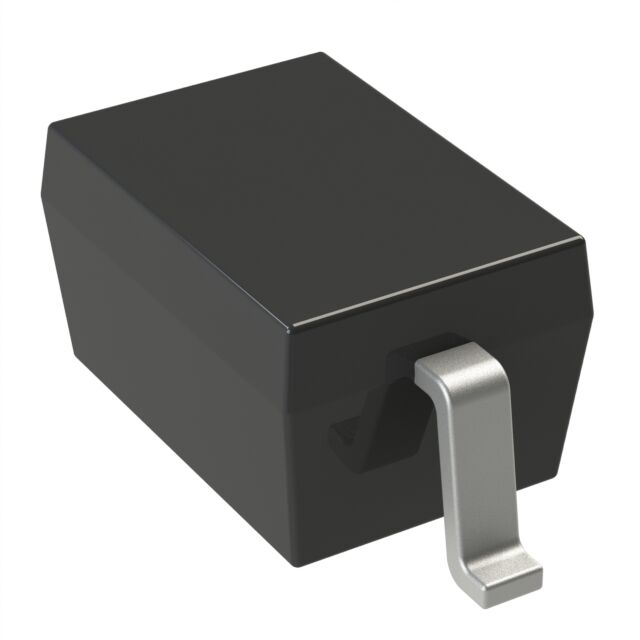

lmages are for reference only.GSEDC5B250
TVS, ESD, SINGLE, BI-DIR, 5V, SO
DatasheetSC-76, SOD-323
14,842 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25V (Typ) Clamp 13.5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
GSEDC5B250
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 25V (Typ) |
| Current - Peak Pulse (10/1000µs) | 13.5A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 25pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | GSEDC15U010 | GSEDC3B010 | GSEDC3U004 | GSEDP3B003 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS, ESD, SINGLE, UNI-DIR, 15.0V | TVS, ESD, DUAL, BI-DIR 3.3V, SOD | TVS, ESD, UNI-DIR, ULTRA-LOW CAP | TVS, SNAPBACK ESD, SINGLE, BI-DI |
| Series | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
