GSEZ3B120

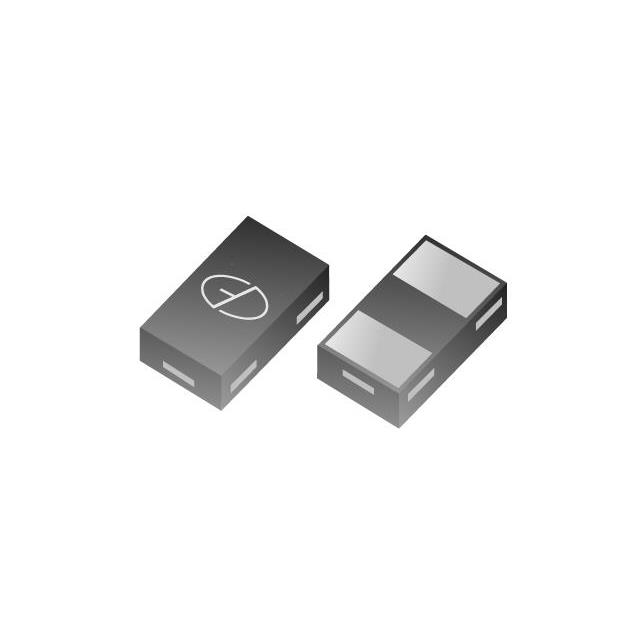

lmages are for reference only.GSEZ3B120
TVS, ESD, SINGLE, BI-DIR, 3.3V,
Datasheet0402 (1006 Metric)
74,035 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006
GSEZ3B120
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.8V |
| Voltage - Clamping (Max) @ Ipp | 8V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | 80W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 12pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | DFN1006 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GSEZ3B170 | GSEC12B006 | GSEC15B006 | GSEC3U2000 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS, ESD, SINGLE, BI-DIR, 3.3V, | TVS, ESD, SINGLE, BI-DIR, LOW CA | TVS, ESD, SINGLE, BI-DIR, LOW CA | TVS, ESD, DUAL, UNI-DIR 3.3V, SO |
| Series | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
