GSF3416
lmages are for reference only.GSF3416
MOSFET, N-CHANNEL, 20V, 6.5A, SO
DatasheetTO-236-3, SC-59, SOT-23-3
84,571 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 6.5A (Ta) 1.4W (Ta) Surface Mount SOT-23
GSF3416
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 6.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

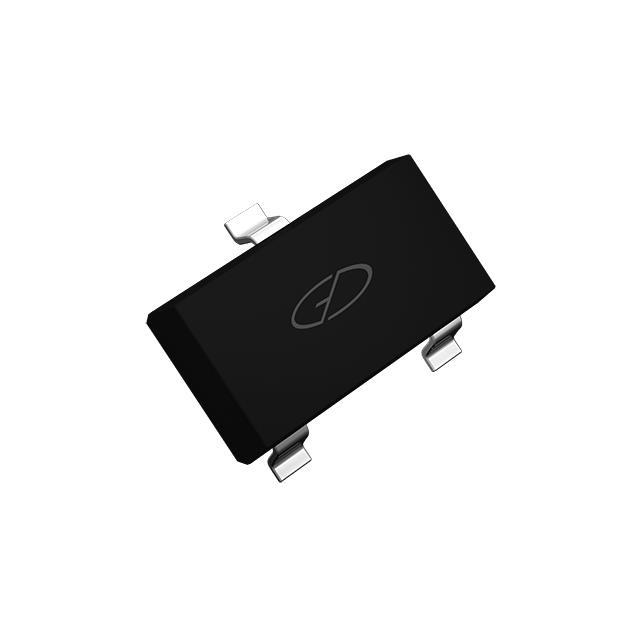

| Part Number | GSF3400 | GSF3404 | GSF3404B | GSF3407 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET, N-CH, SINGLE, 5.6A, 30V, | MOSFET, N-CH, SINGLE, 5.80A, 30V | MOSFET, N-CHANNEL, 30V, 5.8A, SO | MOSFET, P-CH, SINGLE, -4.1A, -30 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
