Product CatalogPart Number
GSFP08150
Manufacturer
Good-Ark SemiconductorDescription
MOSFET, N-CH, SINGLE, 150A, 80V,
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
99,027 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GSFP08150
GSFP08150
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 80 V 150A (Tc) 192W (Tc) Surface Mount 8-PPAK (5.1x5.71)
Quick Inquiry
GSFP08150
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 150A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6900 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 192W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PPAK (5.1x5.71) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 100 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|
| Part Number | GSFP08130 | GSFP0876 | GSF0301 | GSF0304 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET, N-CH, SINGLE, 130A, 80V, | MOSFET, N-CH, SINGLE 80V 75A | MOSFET, N-CH, SINGLE, 600MA, 30V | MOSFET, P-CH, SINGLE, -4.1A, -30 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
GSFP0255
Good-Ark Semiconductor
GSFP03101
Good-Ark Semiconductor
GSFP0341
Good-Ark Semiconductor
GSFP0356
Good-Ark Semiconductor
GSFP0365
Good-Ark Semiconductor
GSFP0380
Good-Ark Semiconductor

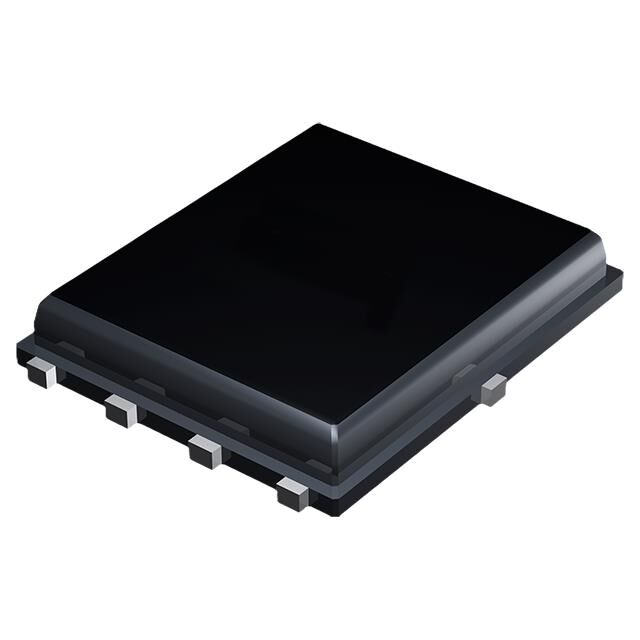

GSFP04202
Good-Ark Semiconductor

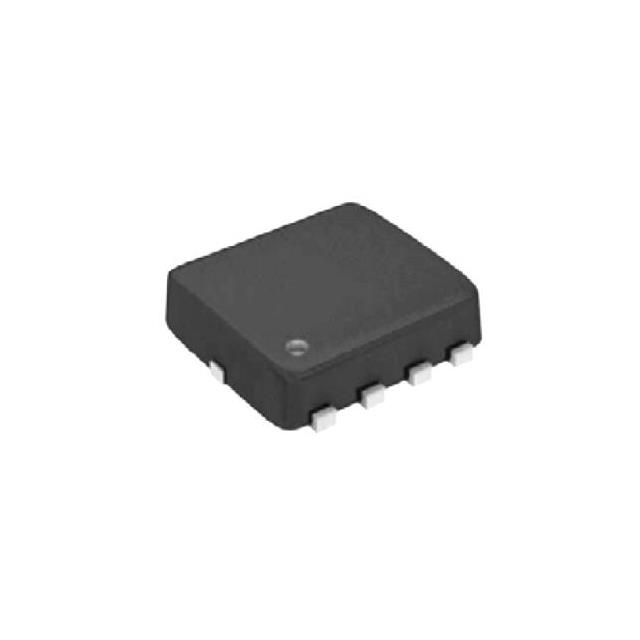

GSFP0446
Good-Ark Semiconductor
GSFP0449
Good-Ark Semiconductor
GSFP06120
Good-Ark Semiconductor

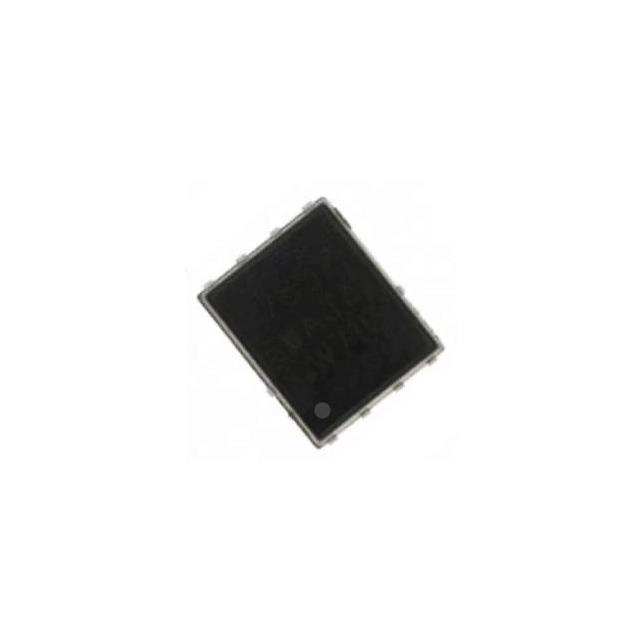

GSFP0641
