Product CatalogPart Number
GSGP1R404
Manufacturer
Good-Ark SemiconductorDescription
MOSFET, N-CH, SINGLE, 160.00A, 4
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
51,239 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
GSGP1R404
GSGP1R404

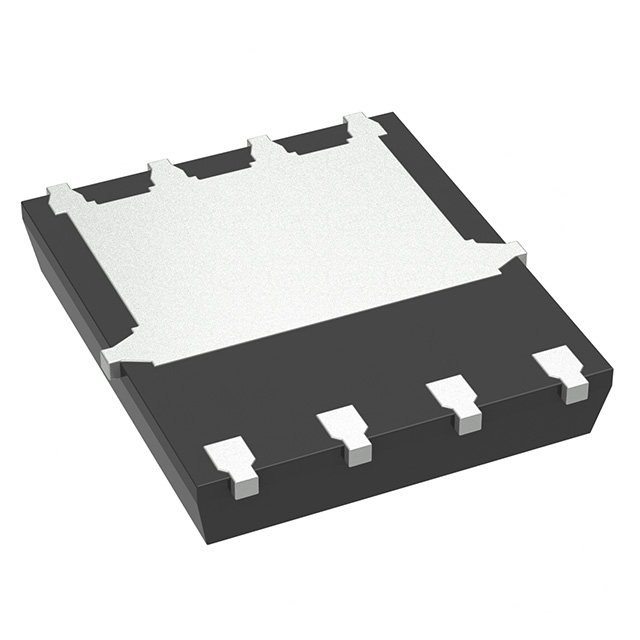

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 40 V 160A (Tc) 96W (Tc) Surface Mount 8-PPAK (5.1x5.86)
Quick Inquiry
GSGP1R404
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Good-Ark Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4822 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 96W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PPAK (5.1x5.86) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | GSGP1R103 | GSGP1R703 | GSGA6R015 | GSGG6504 |
| Manufacturer | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET, N-CH, SINGLE, 100.00A, 3 | MOSFET, N-CH, SINGLE, 138.00A, 3 | MOSFET, N-CH, SINGLE, 175A, 150V | MOSFET, N-CH, SINGLE, 4.00A, 650 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
