GSIB1540-E3/45

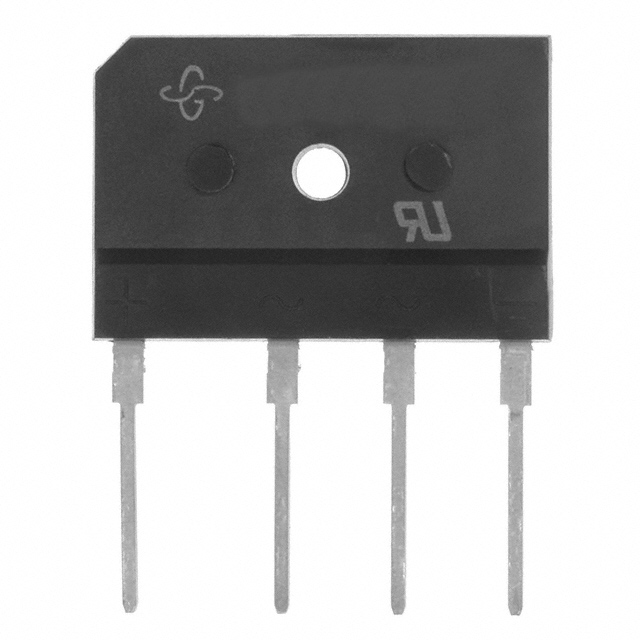

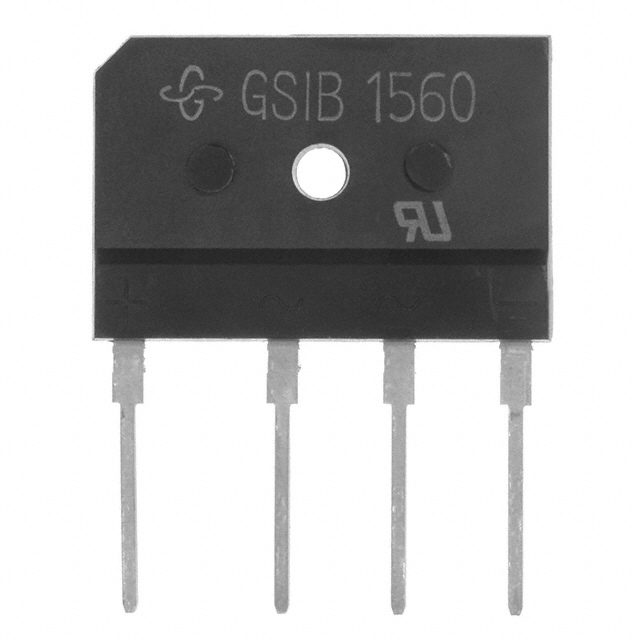

lmages are for reference only.GSIB1540-E3/45
BRIDGE RECT 1P 400V 3.5A GSIB-5S
Datasheet4-SIP, GSIB-5S
81,247 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 400 V Through Hole GSIB-5S
GSIB1540-E3/45
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 3.5 A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 7.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GSIB-5S |
| Supplier Device Package | GSIB-5S |
| Base Product Number | GSIB1540 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | GSIB1540N-M3/45 | GSIB1520-E3/45 | GSIB1520N-M3/45 | GSIB1560-E3/45 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 1P 400V 15A GSIB-5S | BRIDGE RECT 1P 200V 3.5A GSIB-5S | BRIDGE RECT 1P 200V 15A GSIB-5S | BRIDGE RECT 1P 600V 3.5A GSIB-5S |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
