GT1K2P15M

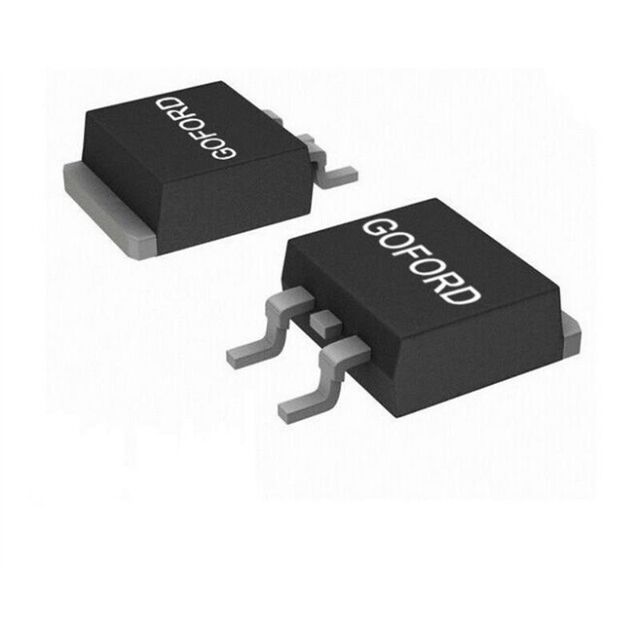

lmages are for reference only.GT1K2P15M
MOSFET P-CH 150V 27A 138W TO-263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
80,581 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 150 V 27A (Tc) 138W (Tc) Surface Mount TO-263
GT1K2P15M
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | SGT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3186 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 138W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 86 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | GT1K2P15D5 | GT1K2P15K | GT1K2P15S | GT1003A |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET P-CH 150V 27A 130W 110M(M | MOSFET P-CH 150V 27A TO-252 | MOSFET P-CH 150V 5A 3W 150M(MAX) | N100V, 3A,RD<140M@10V,VTH1.0V~3. |
| Series | SGT | - | Trench | SGT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
