GT750P10M
lmages are for reference only.GT750P10M
MOSFET P-CH 100V 24A TO-263
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
20,197 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 24A (Tc) 79W (Tc) Surface Mount TO-263
GT750P10M
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Goford Semiconductor |
| Series | SGT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1902 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 79W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

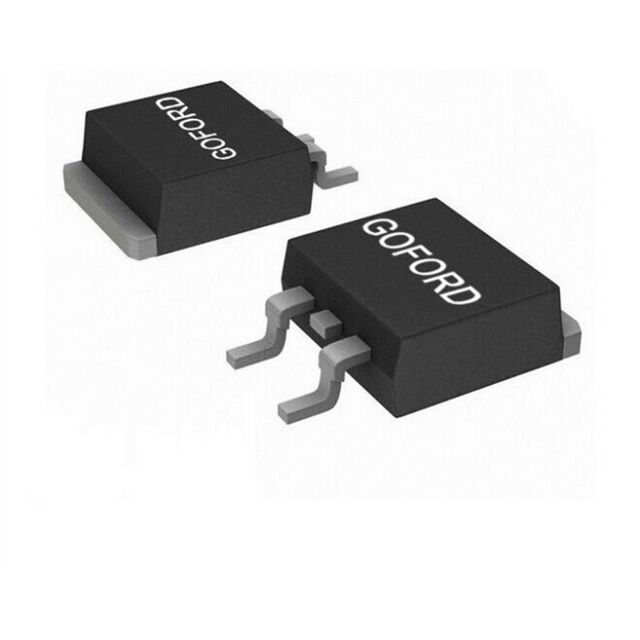

| Part Number | GT750P08K | GT750P10D5 | GT750P10K | GT700P08D3 |
| Manufacturer | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor | Goford Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOSFET P-CH 80V 28A TO-252 | MOSFET P-CH 100V 24A 79W 60M(MAX | P-CH,-100V,-24A,RD(MAX)<85M@-10V | P-80V,-16A,RD(MAX)<75M@-10V,VTH- |
| Series | - | SGT | SGT | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
