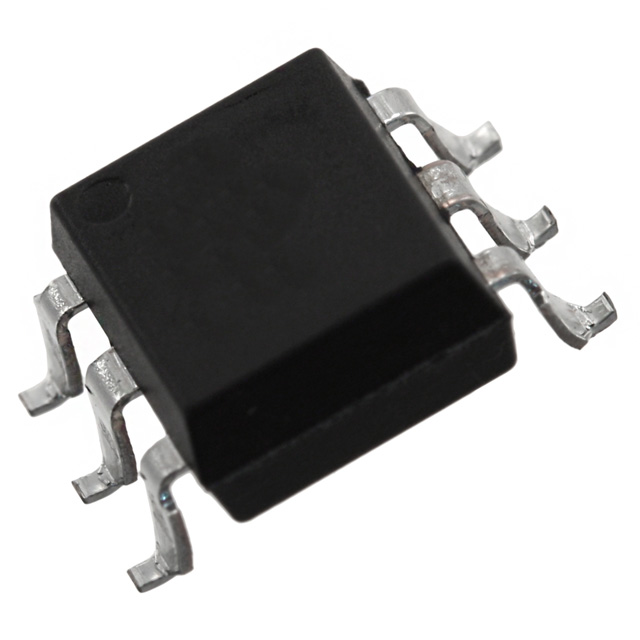

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
H11AA3S(TA)-V
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Everlight Electronics Co Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 10µs, 10µs (Max) |
| Rise / Fall Time (Typ) | 10µs, 10µs (Max) |
| Input Type | AC, DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Base Product Number | H11AA |
| Grade | - |
| Qualification | - |
| Product Attribute | .jpg "H11AA3S(TA)") |
-V.jpg "H11AA3S(TB)-V") |
 |
|
| Part Number | H11AA3S(TA) | H11AA3S(TB)-V | H11AA3SM | H11AA3SM |
| Manufacturer | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | onsemi | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

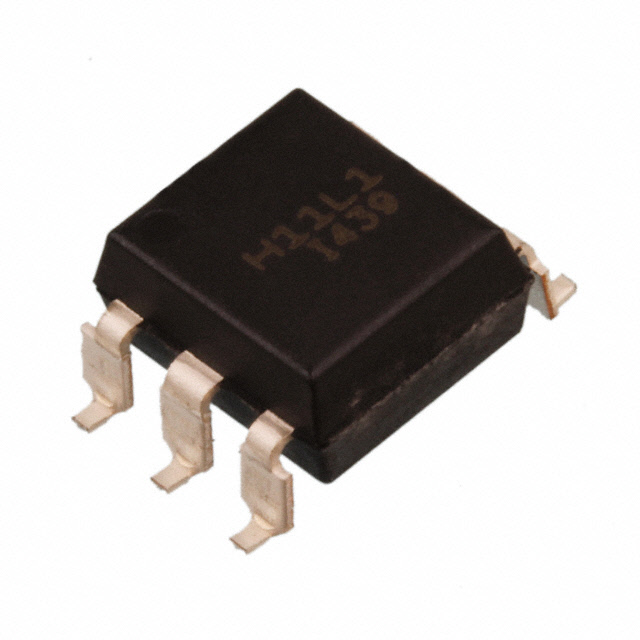

| Description | OPTOISO 5KV TRANS W/BASE 6SMD | OPTOISO 5KV TRANS W/BASE 6SMD | OPTOISO 7.5KV TRANS W/BASE 6SMD | 6PIN AC INPUT, SINGLE OPTOCOUPLE |
| Series | - | - | - | H11A |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tube |
