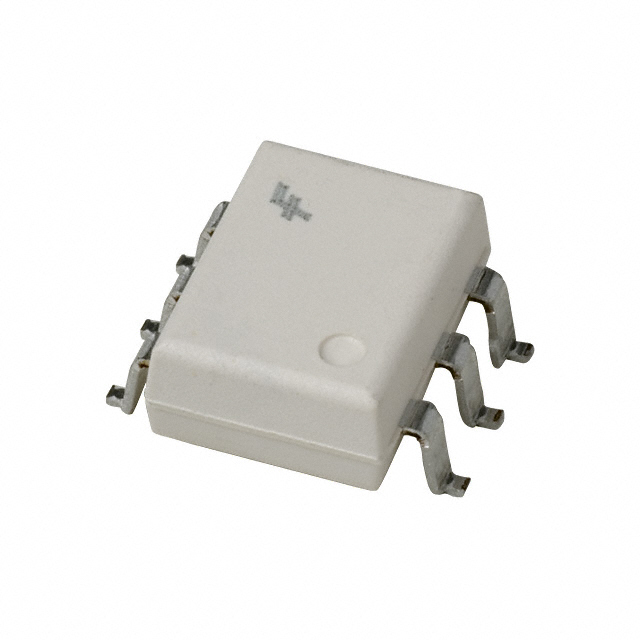

Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
H11AV1SM
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 4170Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 300% @ 10mA |
| Turn On / Turn Off Time (Typ) | 15µs, 15µs (Max) |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |
| Part Number | H11AV1SM | H11AV1SM | H11AV1SMT&R | H11AV1SR2M |
| Manufacturer | Isocom Components 2004 LTD | onsemi | Isocom Components 2004 LTD | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 6PIN TRANSISTOR DETECTOR, SINGLE | OPTOISO 4.17KV TRANS W/BASE 6SMD | 6PIN TRANSISTOR DETECTOR, SINGLE | OPTOISO 4.17KV TRANS W/BASE 6SMD |
| Series | H11AV | - | H11AV | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
