Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-SOP

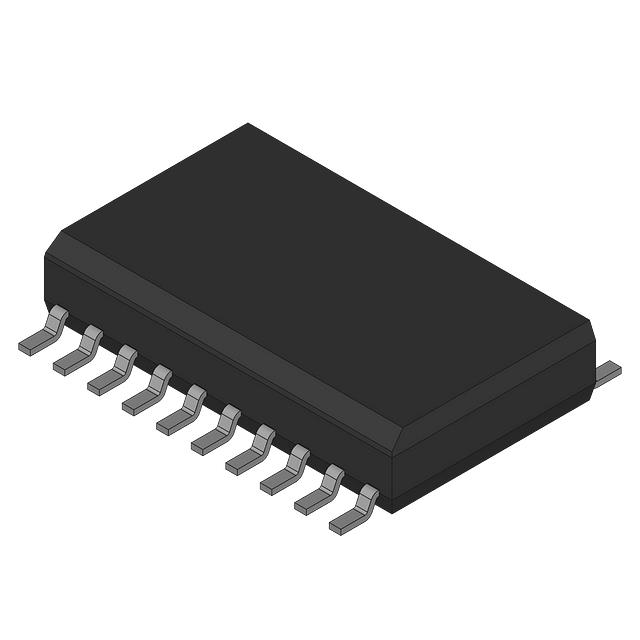

HA16116FPJEL-E
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Renesas |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.9V ~ 40V |
| Frequency - Switching | 600kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SOP |
| Base Product Number | HA16116 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

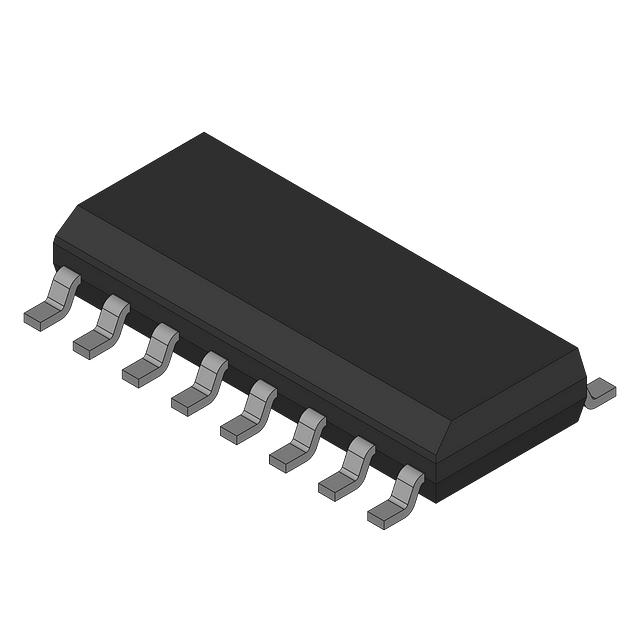

| Part Number | HA16116FPJ | HA16116FPJ-EL | HA16107FPEL-E | HA16121FP |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | RoHS non-compliant | Not applicable | Not applicable | RoHS non-compliant |
| Description | SWITCHING CONTROLLER | IC REG LINEAR SWITCHING REG | SWITCHING CONTROLLER, VOLTAGE-MO | SWITCHING CONTROLLER |
| Series | * | * | * | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
