HBWS1005-9N5S
Manufacturer
Max EchoDescription
FIXED IND 9.5NH 680MA 200MOHM SM
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
98,380 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HBWS1005-9N5S
HBWS1005-9N5S
lmages are for reference only.Payment Methods
Delivery Services

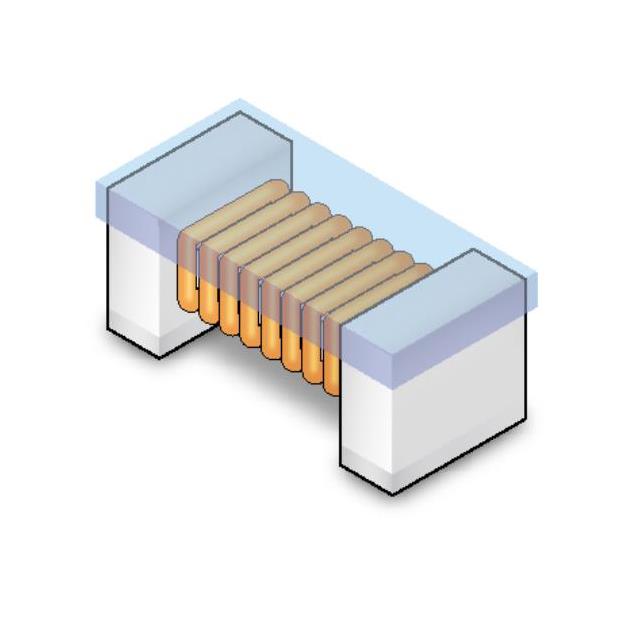

9.5 nH Unshielded Wirewound Inductor 680 mA 200mOhm Max 0402 (1005 Metric)
Quick Inquiry
HBWS1005-9N5S
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Max Echo |
| Series | HBWS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 9.5 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 680 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 18 @ 250MHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.020" (0.50mm) |
| Base Product Number | - |
