Product CatalogPart Number
HBWS1608-R13J
Manufacturer
Max EchoDescription
FIXED IND 130NH 280MA 920MOHM SM
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
38,991 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HBWS1608-R13J
HBWS1608-R13J

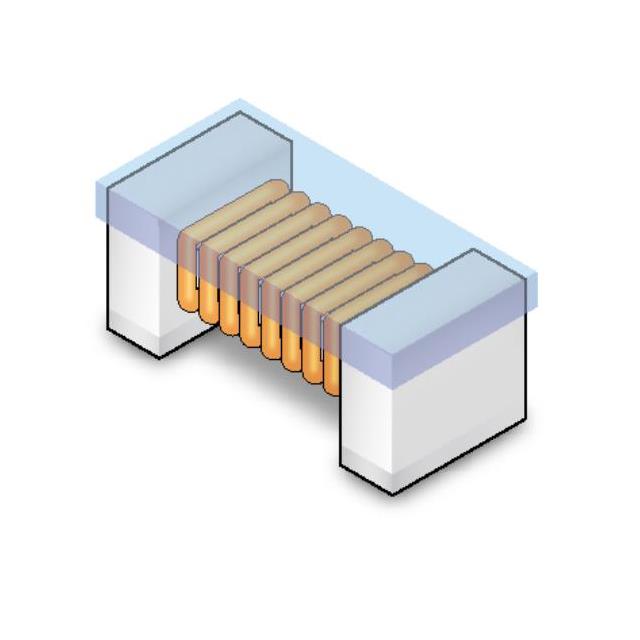

lmages are for reference only.Payment Methods
Delivery Services
130 nH Unshielded Wirewound Inductor 280 mA 920mOhm Max 0603 (1608 Metric)
Quick Inquiry
HBWS1608-R13J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Max Echo |
| Series | HBWS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 130 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 280 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 920mOhm Max |
| Q @ Freq | 35 @ 150MHz |
| Frequency - Self Resonant | 1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.041" W (1.60mm x 1.05mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | HBWS1608-R10J | HBWS1608-R11J | HBWS1608-R12J | HBWS1608-R15J |
| Manufacturer | Max Echo | Max Echo | Max Echo | Max Echo |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 400MA 630MOHM SM | FIXED IND 110NH 400MA 630MOHM SM | FIXED IND 120NH 300MA 650MOHM SM | FIXED IND 150NH 280MA 920MOHM SM |
| Series | Max Echo | Max Echo | Max Echo | Max Echo |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
